THK HSR30ASSHH Miniature Linear Slide Block for Wood CNC Machine



This LM guide is HSR30A series, normal rail size is 30mm, Dust prevention accessories is SSHH.

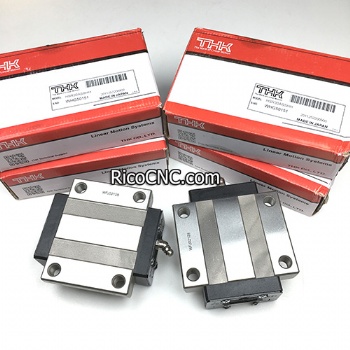

Linear bearings Carriage HSR30ASSHH.jpg

HSR Series Linear Motion Guides features:

• Balls travel in four precision-ground raceways on an LM rail through the LM block, and endplates incorporated in the LM block.

• Each row of balls is placed at a contact angle of 45°so that the rated loads applied to the LM block are uniform in all four directions (radial, reverse-radial and lateral directions) for a constant low friction coefficient, and increased rigidity.

• Blocks self-adjust enabling mounting error to be absorbed, even under a preload, for highly accurate, smooth linear motion.

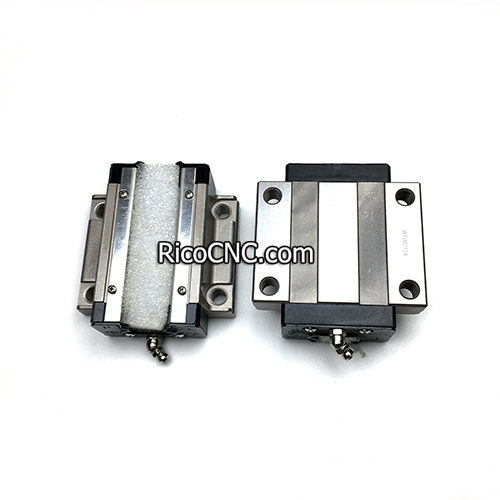

Linear Slider blocks HSR30A.jpg

THK HSR30ASSHH specification:

Model No.

Outer dimensions

Block dimensions

Rail dimensions

Basic load rating

Radial

Height

Width

Length

B

C

S

Pitch

d1xd2xh

Dynamic

Static

M

W

L

F

C

C0

mm

mm

mm

mm

mm

mm

mm

mm

kN

kN

HSR15A

24

47

56.6

38

30

M5

60

4.5x7.5x5.3

10.9

15.7

HSR20A

30

63

74

53

40

M6

60

6x9.5x8.5

19.8

27.4

HSR25A

36

70

83.1

57

45

M8

60

7x11x9

27.6

36.4

HSR30A

42

90

98

72

52

M10

80

9x14x12

40.5

53.7

HSR35A

48

100

109.4

82

62

M10

80

9x14x12

53.9

70.2

HSR45A

60

120

139

100

80

M12

105

14x20x17

82.2

101

HSR55A

70

140

163

116

95

M14

120

16x23x20

121

146

HSR65A

90

170

186

142

110

M16

150

18x26x22

195

228

 Standard Ball Profile Rail HSR.jpg

Symbol

Dust prevention accessories

UU

End seal

SS

End seal + side seal + inner seal

DD

Double seals + side seal + inner seal

ZZ

End seal + side seal + inner seal + metal scraper

KK

Double seals + side seal + inner seal + metal scraper

GG

LiCS

PP

LiCS + side seal + inner seal

SSHH

End seal + side seal + inner seal + LaCS

DDHH

Double seals + side seal + inner seal + LaCS

ZZHH

End seal + side seal + inner seal + metal scraper + LaCS

KKHH

Double seals + side seal + inner seal + metal scraper + LaCS

QZUU

End seal + QZ

QZSS

End seal + side seal + inner seal + QZ

QZDD

Double seals + side seal + inner seal + QZ

QZZZ

End seal + side seal + inner seal + metal scraper + QZ

QZKK

Double seals + side seal + inner seal + metal scraper + QZ

QZGG

LiCS + QZ

QZPP

LiCS + side seal + inner seal + QZ

QZSSHH

End seal + side seal + inner seal + LaCS + QZ

QZDDHH

Double seals + side seal + inner seal + LaCS + QZ

QZZZHH

End seal + side seal + inner seal + metal scraper + LaCS + QZ

QZKKHH

Double seals + side seal + inner seal + metal scraper + LaCS + QZ

LM block with taped hole.jpg

RicoCNC also supplies a range of linear guide block and rails brands also bearings such as Rexroth, INA, THK, HIWIN, PMI, ABBA, STAF, NSK, NTN, FAG, etc. All are original motion products.

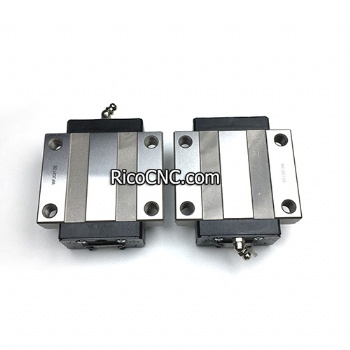

THK HSR30A linear bearing block.jpg
