THK HSR25A1SSHH Flange Type Linear Motion Guide Block

THK HSR25A1SSHH Flange Type Linear Motion Guide Block

• Linear Slider blocks HSR25A
• Linear bearings Carriage HSR25A1SSHH
• THK HSR25A1SSHH
• 25mm LM block with taped hole
• Linear Guide Standard Ball Profile HSR25
• HSR25 Series Linear Motion Guides
• THK LM guide HSR series
• SSHH With end seal+side sea+inner seal+LaCS
INQUIRY

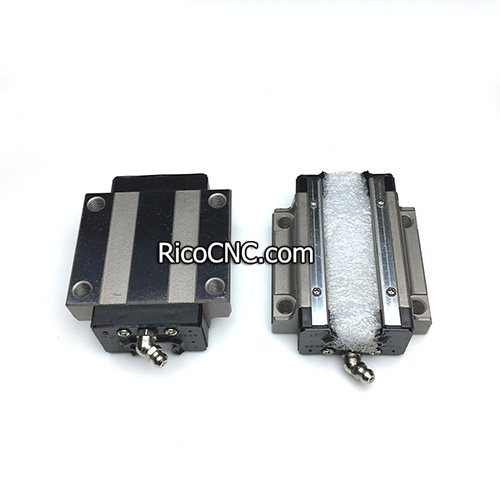

THK HSR25A1SSHH.jpg

THK HSR25A1SSHH Flange Type Linear Motion Guide Block

This HSR25A1SSHH LM guide is HSR25A series, flange type, normal ball size 25mm, Dust prevention accessories is SSHH. THK LM guide HSR series for quick and easy interchangeability, ensuring problem free maintenance and short down times.

HSR Series Linear Motion Guides features:

• Balls travel in four precision-ground raceways on an LM rail through the LM block, and end plates incorporated in the LM block.

• Each row of balls is placed at a contact angle of 45°so that the rated loads applied to the LM block are uniform in all four directions (radial, reverse-radial and lateral directions) for a constant low friction coefficient, and increased rigidity.

• Blocks self-adjust enabling mounting error to be absorbed, even under a preload, for highly accurate, smooth linear motion.

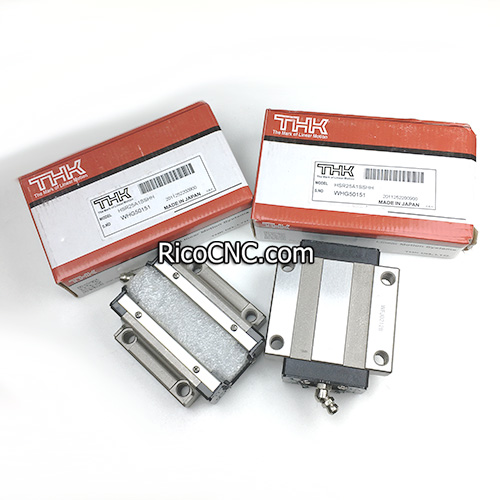

HSR25 Series Linear Motion Guides.jpg

Linear bearings Carriage HSR25A1SSHH.jpg

THK HSR25A1SSHH specification:

Model No.	Outer dimensions			Block dimensions			Rail dimensions		Basic load rating
	Outer dimensions			Block dimensions			Rail dimensions		Radial
	Height	Width	Length	B	C	S	Pitch	d₁xd₂xh	Dynamic	Static
	M	W	L	B	C	S	F	d₁xd₂xh	C	C₀
	mm	mm	mm	mm	mm	mm	mm	mm	kN	kN
HSR15A	24	47	56.6	38	30	M5	60	4.5x7.5x5.3	10.9	15.7
HSR20A	30	63	74	53	40	M6	60	6x9.5x8.5	19.8	27.4
HSR25A	36	70	83.1	57	45	M8	60	7x11x9	27.6	36.4
HSR30A	42	90	98	72	52	M10	80	9x14x12	40.5	53.7
HSR35A	48	100	109.4	82	62	M10	80	9x14x12	53.9	70.2
HSR45A	60	120	139	100	80	M12	105	14x20x17	82.2	101
HSR55A	70	140	163	116	95	M14	120	16x23x20	121	146
HSR65A	90	170	186	142	110	M16	150	18x26x22	195	228

Linear Slider blocks HSR25A.jpg

Symbol	Dust prevention accessories
UU	End seal
SS	End seal + side seal + inner seal
DD	Double seals + side seal + inner seal
ZZ	End seal + side seal + inner seal + metal scraper
KK	Double seals + side seal + inner seal + metal scraper
GG	LiCS
PP	LiCS + side seal + inner seal
SSHH	End seal + side seal + inner seal + LaCS
DDHH	Double seals + side seal + inner seal + LaCS
ZZHH	End seal + side seal + inner seal + metal scraper + LaCS
KKHH	Double seals + side seal + inner seal + metal scraper + LaCS
QZUU	End seal + QZ
QZSS	End seal + side seal + inner seal + QZ
QZDD	Double seals + side seal + inner seal + QZ
QZZZ	End seal + side seal + inner seal + metal scraper + QZ
QZKK	Double seals + side seal + inner seal + metal scraper + QZ
QZGG	LiCS + QZ
QZPP	LiCS + side seal + inner seal + QZ
QZSSHH	End seal + side seal + inner seal + LaCS + QZ
QZDDHH	Double seals + side seal + inner seal + LaCS + QZ
QZZZHH	End seal + side seal + inner seal + metal scraper + LaCS + QZ
QZKKHH	Double seals + side seal + inner seal + metal scraper + LaCS + QZ

Linear Guide Standard Ball Profile HSR25.jpg

RicoCNC also supplies a range of linear guide block and rails brands also bearings such as Rexroth, INA, THK, HIWIN, PMI, ABBA, STAF, NSK, NTN, FAG, etc. All are original motion products.
