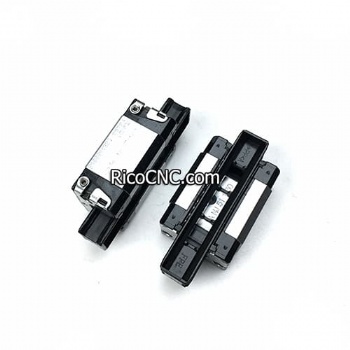

REXROTH R166611320 Ball Runner Block

REXROTH R166611320 Ball Runner Block

The Bosch Rexroth RUNNER BLOCK CS KWD-015-SKS-C1-H-1, R166611320 is a high-precision ball runner block designed for linear motion applications requiring compactness and accuracy. This model is part of the SKS series, which features a slimline width, short length, and standard height.

The dynamic load factor is C=6720 N, and the static load factor is C0=7340 N. It is also distinguished by SS - standard seal, without ball chain. Lubrication with Dynalub 510 grease is recommended. This carriage is suitable for use on R1605_ & R1607_ linear guides.

The block has a nominal size of 15 mm and the following dimensions: width A=34 mm, total height with guide H=24 mm, length B=44.7 mm and distance between holes E1=26 mm. The mass of the item is 0.1330 kg

• Area of application: For restricted space in longitudinal and transverse direction

• The same high load ratings in all four main directions of loading

• Excellent dynamic characteristics

• Attachments on the Ball Runner Block can be mounted from above

• Limitless interchangeability as all Ball Rail Systems can be combined at will with all Ball Runner

• Block versions within each accuracy class

Rico also can supply other Rexroth linear block and railway systems.

RicoCNC supplies a range of linear guide block and rails brands such as Rexroth, INA, THK, HIWIN, PMI, ABBA, STAF, etc. All are original motion products.
