Linear Guide Standard Ball Profile THK SHS25V Linear Bearing Block

• THK SHS25V
• THK Linear Bearing Block
• THK Linear Motion System SHS-V series
• Linear Motion SHS25V
• Caged Ball LM Guide
• Linear Guide Standard Ball Profile Rail Series SHS25
• THK 25 mm rail ball bearing
INQUIRY

THK Linear Motion System.jpg

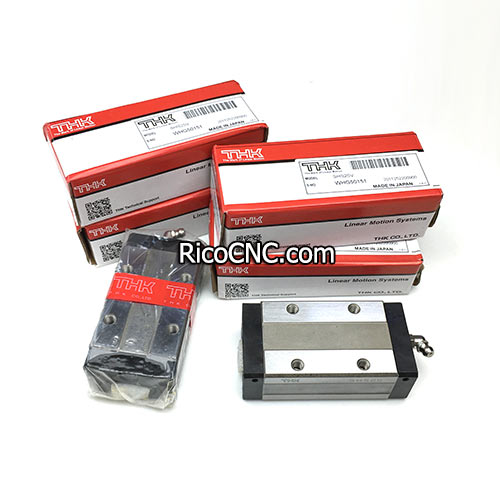

Linear Guide Standard Ball Profile THK SHS25V Linear Bearing Block

This LM block SHS25V has a smaller width (W) and is equipped with tapped holes. It is suitable for places where space for the table width is limited.
THK 25mm Rail ball bearing.jpg

Caged Ball LM Guide SHS series features:
Long Service Life and Long-term Maintenance-free Operation
Superbly High Speed
Low Noise, Acceptable Running Sound
Smooth Motion
Low Dust Generation
THK Linear Bearing Block.jpg

THK SHS25V Linear Bearing Block’s Feature:
Narrow Tapped Holes
Low Height
Caged Ball
Circular Arc
Interchangeable Available
Quick Ship
Stainless Available
THK SHS size.jpg

Specification of THK SHS25V and other SHS-V series, SHS-LV series.

Model No.	Outer dimensions			LM block dimensions
Model No.	Height M	Width W	Length L	B	C	Sxf	L	T	K	N	E	Grease nipple
SHS15V SHS15LV	24	34	64.4 79.4	26	26 34	M4x4	48 63	5.9	21	5.5	5.5	PB1021B
SHS 20V SHS 20LV	30	44	79 98	32	36 50	M5x5	59 78	8	25.4	6.5	12	B-M6F
SHS 25V SHS 25LV	36	48	92 109	35	35 50	M6x6.5	71 88	8	30.2	7.5	12	B-M6F
SHS 30V SHS 30LV	42	60	106 131	40	40 60	M8x8	80 105	8	35	8	12	B-M6F
SHS 35V SHS 35LV	48	70	122 152	50	50 72	M8x10	93 123	14.7	40.5	8	12	B-M6F
SHS 45V SHS 45LV	60	86	140 174	60	60 80	M10x15	106 140	14.9	51.1	10.5	16	B-PT1/8
SHS 55V SHS 55LV	70	100	171 213	75	75 95	M12x15	131 173	19.4	57.3	11	16	B-PT1/8
SHS 65V SHS 65LV	90	126	221 272	76	70 120	M16x20	175 226	19.5	71	19	16	B-PT1/8

Linear Guide Standard Ball Profile Rail Series SHS25.jpg

This SHS25V major applications is Machining center / NC lathe / drilling machine / electric discharge machine / conveyance system.
SHS-V series.jpg

RicoCNC also can supply other Caged Ball LM Guide such as model SHS-C, SHS-LC, SHS-R, SHS-LR.
Other brand linear guide blocks and rails such as INA, Bosch Rexroth, HIWIN, PMI, ABBA, etc.

SHS25V bearing.jpg
