New Original THK SRG45LR Linear Guide Rail Block

New Original THK SRG45LR Linear Guide Rail Block

• THK SRG45LR linear guide block
• Linear guide slider SRG45LR
• SRG45LR guide block
• Linear bearing block SRG45LR
• THK linear ball bearing
• SRG45LR block
• Made in Japan
INQUIRY

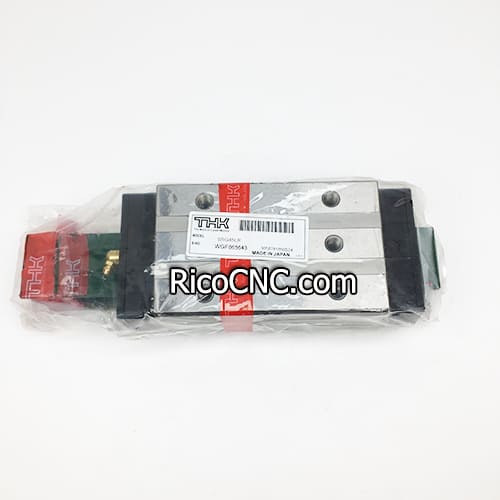

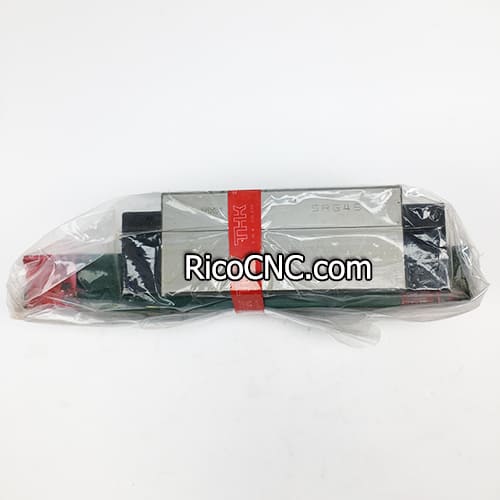

THK SRG45LR.jpg

New Original THK SRG45LR Linear Guide Rail Block

This is original THK SRG45LR linear guide rail block,
THK SRG45LR is a high-precision linear guide block from the SRG series, suitable for 45 mm wide rails, suitable for automation equipment, CNC machine, and robots.

Specification of THK SRG45 guide block:

Model No.	Outer dimensions			LM block dimensions										Pilot hole for side nipple
Model No.	Height M	Width W	Length1 L	B	C	S	ℓ	L1	T	K	N	E	Grease nipple	e0	f0	D02
SRG 35R SRG 35GR	55	70	125	50	50	M8	12	82.2	18.5	49	13.5	12	B-M6F	6	13	5.2
SRG 35LR SRG 35GLR	55	70	155	50	72	M8	12	112.2	18.5	49	13.5	12	B-M6F	6	13	5.2
SRG 35SLR SRG 35GSLR	55	70	180.8	50	100	M8	12	138	18.5	49	13.5	12	B-M6F	6	13	5.2
SRG 45R SRG 45GR	70	86	155	60	60	M10	20	107	24.5	62	20	16	B-PT1/8	7	17	5.2
SRG 45LR SRG 45GLR	70	86	190	60	80	M10	20	142	24.5	62	20	16	B-PT1/8	7	17	5.2
SRG 45SLR SRG 45GSLR	70	86	231.5	60	120	M10	20	183.5	24.5	62	20	16	B-PT1/8	7	17	5.2

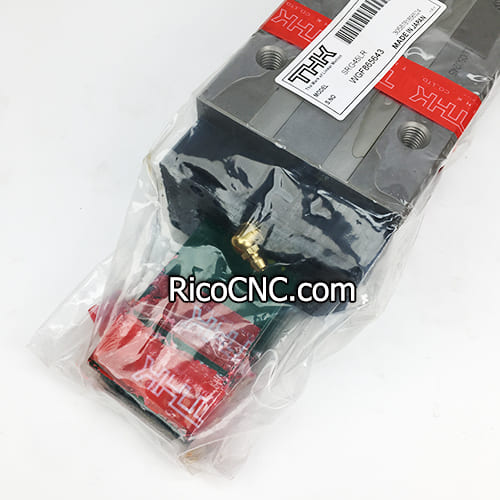

SRG45LR Linear Guide Block .jpg

RicoCNC can supply a range of linear slider blocks and rails, including Rexroth, INA, THK, HIWIN, PMI, ABBA, STAF, NSK, NTN, FAG, etc.
