Bosch Rexroth R162171320 Linear Ball Runner Block

Bosch Rexroth R162171320 Linear Ball Runner Block

• REXROTH R162171320 ball runner block
• R162171320
• Bosch Rexroth runner block
• KWD-030-SNH-C1-H-1
• Linear carriages R162171320
• Made of carbon steel
• Rexroth Linear Bearing
• Linear block
INQUIRY

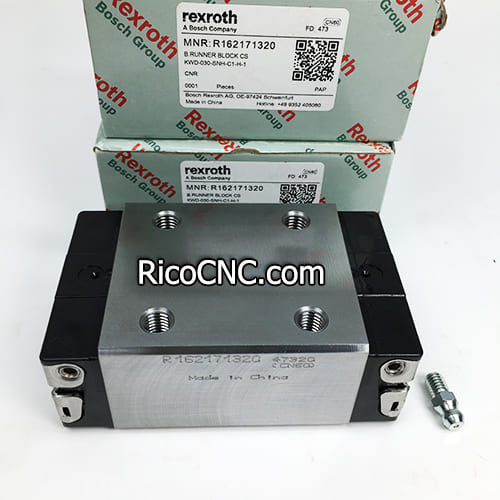

Linear carriages R162171320.jpg

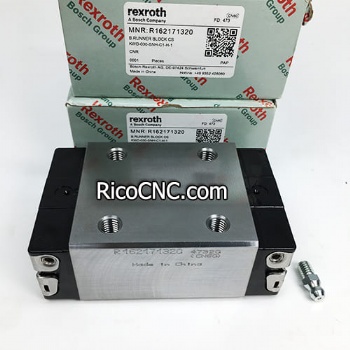

Bosch Rexroth R162171320 Linear Ball Runner Block

This is Bosch Rexroth R162171320 KWD-030-SNH-C1-H-1 linear ball runner block, made of carbon steel. It is commonly used in CNC machines and other linear motion applications.

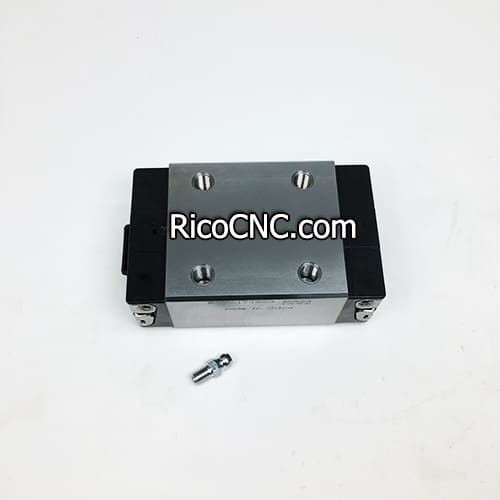

R162171320 ball runner block.jpg

Specification of Bosch Rexroth R162171320 block

Brand	Bosch-Rexroth
Model	R162171320
Product type	linear carriages
Size [mm]	30
A [mm]	60
H [mm]	45
B [mm]	97.7
E1 [mm]	40
E2 [mm]	40
Preload class	C1 - moderate preload
Accuracy class	H - high
Seal type	SS - standard seal, without ball chain
B1 [mm]	67.4
H1 [mm]	38.35
S2	M8
T [mm]	80
A2 [mm]	28
H2 [mm]	28.35
N6 [mm]	17
S5 [mm]	9
Load capacity C [N]	36500
Load capacity C0 [N]	48100
Load moment Mt [Nm]	630
Load moment Mt0 [Nm]	830
Load moment ML [Nm]	440
Load moment ML0 [Nm]	580
Temperature range	from -10 to +100 °C
Material	Carbon steel
Ball chain	Without chain
Maintenance and Lubrication	Relubrication via lubrication nipple
Weight [kg]	0.9910

RicoCNC supplies a range of linear guide block and rails brands such as Rexroth, INA, THK, HIWIN, PMI, ABBA, STAF, etc. All are original motion products.
If any need of CNC machine parts, welcome to contact us.

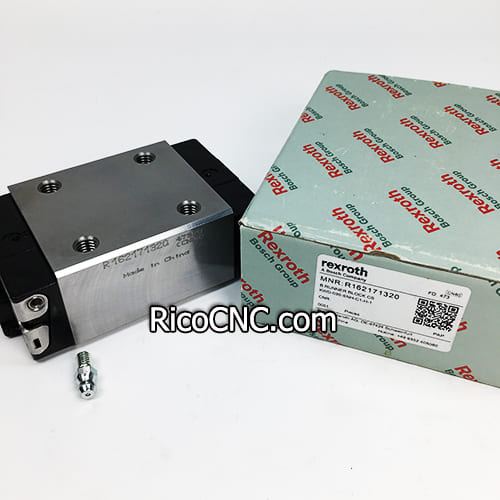

REXROTH R162171320.jpg
