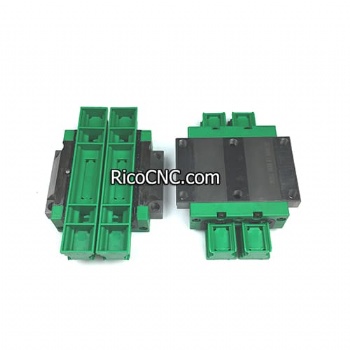

INA Recirculating Ball Bearing Block KWVE20-W-G2-V1
This Linear Guide Carriage is KWVE20-W linear recirculating ball bearing and guideway assembly KWVE20-W-G2-V1, also called KWVE20-W-V1-G2.
| W | Wide Carriage |
| V1 | No Preload |
| G2 | Precision Class 2 |
Weight and Dimensions
| Inner (d) MM | 42 |
| Outer (D) MM | 80 |
| Width (B) MM | 69,8 |
| Inner (d) Inch | 1.6535 |
| Outer (D) Inch | 3.1496 |
| Width (B) Inch | 2.748 |
| Weight (kg) | 0.5 |
RicoCNC supplies a range of CNC motion products, such as linear guide block and guide rails, all parts are original.
| Model | H mm | B mm | L mm |
| KWVE15-B | 24 | 47 | 61,2 |
| KWVE20-B | 30 | 63 | 71,4 |
| KWVE25-B | 36 | 70 | 83,3 |
| KWVE30-B | 42 | 90 | 99 |
| KWVE35-B | 48 | 100 | 112 |
| KWVE45-B | 60 | 120 | 140,6 |
| KWVE55-B | 70 | 140 | 173,6 |
| KWVE20-B-L | 30 | 63 | 88,9 |
| KWVE25-B-L | 36 | 70 | 109,1 |
| KWVE30-B-L | 42 | 90 | 127 |
| KWVE35-B-L | 48 | 100 | 145 |
| KWVE45-B-L | 60 | 120 | 172,7 |
| KWVE55-B-L | 70 | 140 | 211,6 |
| KWVE15-B-H | 28 | 34 | 61,2 |
| KWVE20-B-H | 30 | 44 | 71,4 |
| KWVE25-B-H | 40 | 48 | 83,3 |
| KWVE30-B-H | 45 | 60 | 99 |
| KWVE35-B-H | 55 | 70 | 112 |
| KWVE45-B-H | 70 | 86 | 140,6 |
| KWVE25-B-HL | 40 | 48 | 109,1 |
| KWVE30-B-HL | 45 | 60 | 127 |
| KWVE35-B-HL | 55 | 70 | 145 |
| KWVE45-B-HL | 70 | 86 | 172,7 |
| KWVE15-B-EC | 24 | 52 | 44,5 |
| KWVE20-B-EC | 28 | 59 | 50,4 |
| KWVE25-B-EC | 33 | 73 | 58,2 |
| KWVE30-B-EC | 42 | 90 | 69 |
| KWVE35-B-EC | 48 | 100 | 76,2 |
| KWVE45-B-EC | 60 | 120 | 97,8 |
| KWVE15-B-ESC | 24 | 34 | 44,5 |
| KWVE20-B-ESC | 28 | 42 | 50,4 |
| KWVE25-B-ESC | 33 | 48 | 58,2 |
| KWVE30-B-ESC | 42 | 60 | 69 |
| KWVE35-B-ESC | 48 | 70 | 76,2 |
| KWVE45-B-ESC | 60 | 86 | 97,8 |
| KWVE20-B-N | 27 | 63 | 71,4 |
| KWVE25-B-N | 31 | 70 | 83,3 |
| KWVE30-B-N | 38 | 90 | 99 |
| KWVE35-B-N | 44 | 100 | 112 |
| KWVE45-B-N | 52 | 120 | 140,6 |
| KWVE20-B-NL | 27 | 63 | 88,9 |
| KWVE25-B-NL | 31 | 70 | 109,1 |
| KWVE30-B-NL | 38 | 90 | 127 |
| KWVE35-B-NL | 44 | 100 | 145 |
| KWVE45-B-NL | 52 | 120 | 172,7 |
| KWVE15-B-S | 24 | 34 | 61,2 |
| KWVE20-B-S | 30 | 44 | 71,4 |
| KWVE25-B-S | 36 | 48 | 83,3 |
| KWVE30-B-S | 42 | 60 | 99 |
| KWVE35-B-S | 48 | 70 | 112 |
| KWVE45-B-S | 60 | 86 | 140,6 |
| KWVE55-B-S | 70 | 100 | 173,6 |
| KWVE20-B-SL | 30 | 44 | 88,9 |
| KWVE25-B-SL | 36 | 48 | 109,1 |
| KWVE30-B-SL | 42 | 60 | 127 |
| KWVE35-B-SL | 48 | 70 | 145 |
| KWVE45-B-SL | 60 | 86 | 172,7 |
| KWVE55-B-SL | 70 | 100 | 211,6 |
| KWVE20-B-SN | 27 | 44 | 71,4 |
| KWVE25-B-SN | 31 | 48 | 83,3 |
| KWVE30-B-SN | 38 | 60 | 99 |
| KWVE35-B-SN | 44 | 70 | 112 |
| KWVE45-B-SN | 52 | 86 | 140,6 |
| KWVE20-B-SNL | 27 | 44 | 88,9 |
| KWVE25-B-SNL | 31 | 48 | 109,1 |
| KWVE30-B-SNL | 38 | 60 | 127 |
| KWVE35-B-SNL | 44 | 70 | 145 |
| KWVE45-B-SNL | 52 | 86 | 172,7 |
| KWVE25-B-HS | 36 | 70 | 89,3 |
| KWVE25-B-HS-N | 31 | 70 | 89,3 |
| KWVE25-B-HS-H | 40 | 48 | 89,3 |
| KWVE25-B-HS-S | 36 | 48 | 89,3 |
| KWVE25-B-HS-SN | 31 | 48 | 89,3 |
RicoCNC is a reliable source for high quality CNC machine spare parts and toolings, welcome to your inquiry.
