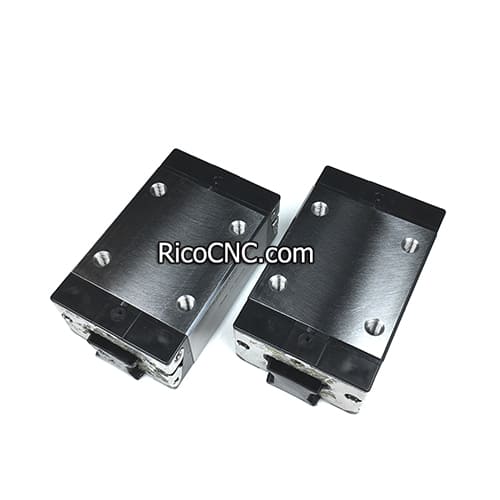

R162232320 Bosch Rexroth Linear Guide Block KWD-035-SNS-C2-H-1


This is Ball runner block, SNS, size 35, steel CS, accuracy high, average preload, without ball chain, the mode number is R162232320, KWD-035-SNS-C2-H-1.



R162232320 Bosch Rexroth Linear Guide Block features:

• Area of application: For restricted space in transverse direction

• High torque capacity

• The same high load ratings in all four main directions of loading

• Long-term lubrication is possible over several years

• Limitless interchangeability as all Ball Rail Systems can be combined at will with all Ball Runner Block versions within each accuracy class.

• Different preload classes

• Optimized entry-zone geometry and high number of balls minimize variation in elastic deflection

• Attachments on the ball runner block can be mounted from above

• Integrated all-round sealing

• Minimum quantity lubrication system with integrated reservoir for oil lubrication

• End-face fastening thread for all attachments

• Can be used on all SNS/SNO ball guide rails

• Excellent dynamic characteristics

• Ball runner block pre-lubricated at the factory



Linear Guide Block KWD-035-SNS-C2-H-1 specifications:

Nominal size [mm]35
FormatSNS - slimline, normal, standard height
Type of constructionHigh-precision ball runner block
Ball chainWithout ball chain (standard)
Material (profiled rail systems)Carbon steel
Preload classC2 - Medium preload
Accuracy classH - Highly accurate
SealSS - Standard seal
Self-aligning for compensation of misalignmentsWithout self-alignment
Width of runner block [mm]70
Length of runner block [mm]110.5
Height of runner block [mm]40.4
LubricationWith initial lubrication and preservation
Mass m [g]1.25
Permissible ambient temperature- 10 °C ... + 80 °C
Footnote friction coefficient μWithout friction of seal
VersionBall rail system


RicoCNC supplies a range of linear guide block and rails brands such as Rexroth, INA, THK, HIWIN, PMI, ABBA, STAF, etc. All are original motion products.


If any need of CNC machine parts, welcome to contact us.
