SHS25LV THK Caged Ball LM Guide SHS Series Linear Bearing Block

SHS25LV THK Caged Ball LM Guide SHS Series Linear Bearing Block

• THK SHS25LV
• THK Linear Bearing Block
• THK Linear Motion System SHS-LV series
• Linear Motion SHS25LV
• Caged Ball LM Guide SHS25LV
• Linear Guide Standard Ball Profile Rail Series SHS25
• 25 mm rail ball bearing carriage
• THK Model SHS-LV
INQUIRY

SHS25LV THK Caged Ball LM Guide SHS Series Linear Bearing Block

THK LM block SHS25LV is a stanard linear motion carriage widely used in CNC machines. It has a smaller width (W) and is equipped with tapped holes. It is suitable for places where space for the table width is limited.

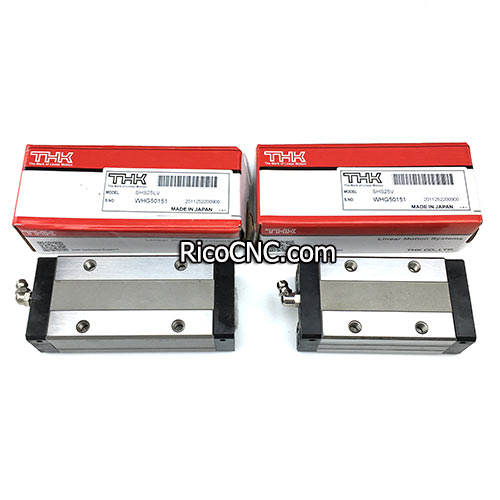

THK SHS 25LV Carriage.jpg

This SHS25LV LM block has the same sectional shape as model SHS25V, but has a longer overall LM block length (L) and a greater rated load capacity.
THK SHS-LV.jpg

Caged Ball LM Guide SHS series features:
● 4-way equal load
Each row of balls is placed at a contact angle of 45°so that the rated loads applied to the LM block are uniform in the four directions (radial, reverse-radial and lateral directions), enabling the LM Guide to be used in all orientations and in extensive applications.
● Self-adjustment capability
The self-adjustment capability through Face-to-Face configuration of THK's unique circular-arc grooves (DF set) enables a mounting error to be absorbed even under a preload, thus achieving highly accurate, smooth linear motion.
● Global standard size
SHS is designed to have dimensions almost the same as that of model HSR, which THK as a pioneer of the linear motion system has developed and is practically a global standard model.
● Low center of gravity, high rigidity
As a result of downsizing the LM rail section, the center of gravity is lowered and the rigidity is increased.
THK SHS25LV .jpg

THK SHS25LV Linear Bearing Block’s feature:
Narrow Tapped Holes
Low Height
Caged Ball
Circular Arc
Interchangeable Available
Quick Ship
Stainless Available
THK SHS25LV size.jpg

Specification of THK SHS25LV and other SHS-V series, SHS-LV series.

Model No.	Outer dimensions			LM block dimensions
Model No.	Height M	Width W	Length L	B	C	Sxf	L	T	K	N	E	Grease nipple
SHS15V SHS15LV	24	34	64.4 79.4	26	26 34	M4x4	48 63	5.9	21	5.5	5.5	PB1021B
SHS 20V SHS 20LV	30	44	79 98	32	36 50	M5x5	59 78	8	25.4	6.5	12	B-M6F
SHS 25V SHS 25LV	36	48	92 109	35	35 50	M6x6.5	71 88	8	30.2	7.5	12	B-M6F
SHS 30V SHS 30LV	42	60	106 131	40	40 60	M8x8	80 105	8	35	8	12	B-M6F
SHS 35V SHS 35LV	48	70	122 152	50	50 72	M8x10	93 123	14.7	40.5	8	12	B-M6F
SHS 45V SHS 45LV	60	86	140 174	60	60 80	M10x15	106 140	14.9	51.1	10.5	16	B-PT1/8
SHS 55V SHS 55LV	70	100	171 213	75	75 95	M12x15	131 173	19.4	57.3	11	16	B-PT1/8
SHS 65V SHS 65LV	90	126	221 272	76	70 120	M16x20	175 226	19.5	71	19	16	B-PT1/8

Linear Motion SHS25LV.jpg
This SHS25LV major applications is machining center / NC lathe / drilling machine / electric discharge machine / conveyance system.
THK block.jpg

RicoCNC also can supply other Caged Ball LM Guide such as model SHS-C, SHS-LC, SHS-R, SHS-LR.
Other brand linear guide blocks such as INA, Bosch Rexroth, PMI, ABBA, HIWIN, etc.
THK Linear Bearing Block.jpg
