REXROTH R162211420 Linear Guide Carriage

REXROTH R162211420 Linear Guide Carriage

• REXROTH R162211420
• Linear Guide Carriage R162211420
• Bosch Rexroth R162211420 Runner Block
• KWD-015-SNS-C1-N-1
• Ball Runner Blocks SNS
• Ball Rail Systems
• Size 15 linear guide block
• Rexroth linear guide system
INQUIRY

REXROTH R162211420 Linear Guide Carriage

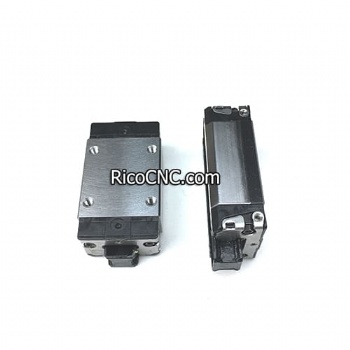

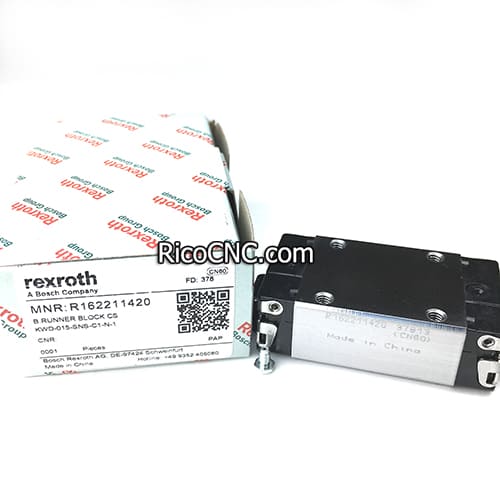

This is a Ball runner block, the model number is R162211420. KWD-015-SNS-C1-N-1, SNS, size 15, steel CS, accuracy standard, low preload, without ball chain, slimline width, normal length, standard height. The Runner block body made of unalloyed steel CS, With initial lubrication and preservation.

Ball Rail Systems.jpg

REXROTH R162211420 Specifications:

Nominal size [mm]	15
Format	SNS - slimline, normal, standard height
Type of construction	High-precision ball runner block
Ball chain	Without ball chain (standard)
Material (profiled rail systems)	Carbon steel
Preload class	C1 - Low preload
Accuracy class	N - Normal
Seal	SS - Standard seal
Self-aligning for compensation of misalignments	Without self-alignment
Width of runner block [mm]	34
Length of runner block [mm]	58.2
Height of runner block [mm]	19.9
Height of runner block with guide rail [mm]	24
Lubrication	With initial lubrication and preservation

Ball Runner Blocks SNS .jpg

Bosch Rexroth R162211420 Runner Block.jpg

Ball Runner Blocks KWD-015-SNS-C1-N-1 features:

• Area of application: For restricted space in transverse direction

• High torque capacity

• The same high load ratings in all four main directions of loading

• Long-term lubrication is possible over several years

• Limitless interchangeability as all Ball Rail Systems can be combined at will with all Ball Runner • Block versions within each accuracy class.

RicoCNC supplies a range of linear guide block and rails brands such as Rexroth, INA, THK, HIWIN, PMI, ABBA, STAF, etc. All are original motion products.
