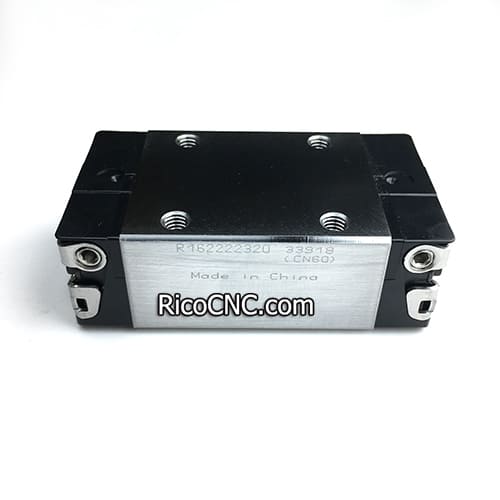

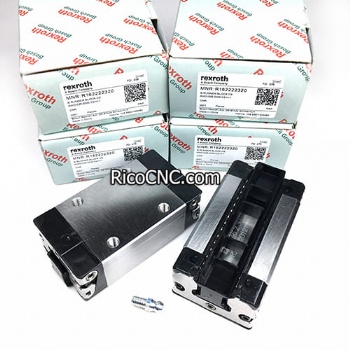

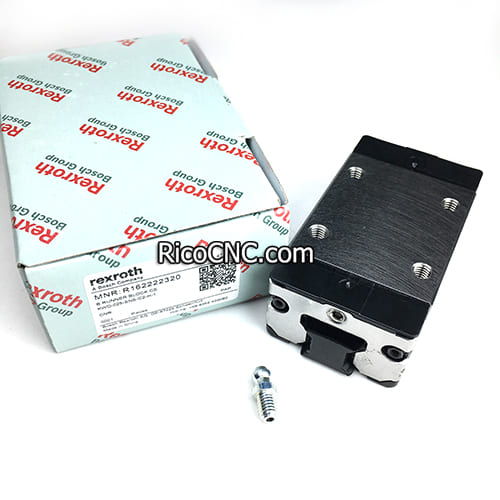

R162222320 Rexroth Ball Rail Linear Guide Runner Block
RUNNER BLOCK CS KWD-025-SNS-C2-H-1 R162222320 is a premium ball runner block designed for high precision and rigidity in linear motion applications. It is SNS, size 25, steel CS, accuracy high, average preload, without ball chain. This model features a slimline width, normal length, and standard height, making it suitable for installations with limited transverse space.
Linear Bearings R162222320 specifications:
| Height of runner block | 29.9 |
| Footnote friction coefficient μ | Without friction of seal |
| Permissible ambient temperature | -10 °C ... +80 °C |
| Format | SNS - slimline, normal, standard height |
| Self-aligning for compensation of misalignments | Without self-alignment |
| Ball chain | Without ball chain (standard) |
| Accuracy class | H - Highly accurate |
| Runner block or guide rail | Runner block |
| Width of runner block | 48 |
| Length of runner block | 86.2 |
| Linear guide type | Ball rail system |
| Material (profiled rail systems) | Carbon steel |
| Max. acceleration amax | 500 |
| Preload force | 1820 |
| Maximum permissible linear speed vmax | 5 |
| Lubrication | With initial lubrication and preservation |
| Seal | SS – Standard seal |
| Permissible ambient temperature (max) | 80 |
| Permissible ambient temperature (min) | -10 |
| Internal product information | For LS – low-friction seal with external longitudinal seal |
| Nominal size | 25 |
R162222320 Rexroth Linear guide block Features:
Application range Limited lateral space
High torque load capacity
High load ratings in all four main loading directions
Long-term lubrication for several years
Unlimited interchangeability as all ball guide systems can be combined in any way with all ball guide blocks within each accuracy class.
Different preload levels
Optimized entry zone geometry and large number of balls minimize variations in elastic deflection
Attachments on ball guide blocks can be mounted from above
Integrated all-round sealing
Minimum volume lubrication system with built-in oil reservoir for lubricants
Face fastening threads for all accessories
Can be used on all SNS/SNO ball rails
Excellent dynamic behavior: Excellent dynamic behavior
Rico also supplies other Rexroth lindear guide block, such as Bosch Rexroth R162422320, R162282320 Bosch Rexroth, Rexroth R162432320, Bosch Rexroth Linear Ball Runner Blocks R165372320, R162221320 Carriage KWD-025-SNS-C1-H-1 Rexroth, R162121420 Rexroth Linear Runner Block , R162471320 Bosch Rexroth, Rexroth R165172320 KWD-030-FNS-C2-H-1, Bosch Rexroth R165322420, R162281322 Ball Rubber Block, Rexroth R169321410 R169329310, R169421410 Size 25 Ball Rail Runner Block, R162471420 KWD-030-SLH-C1-N-1 Bosch, R166671420, R162381320, R162281320, R165181320, R166689420, R165111320, R-1659-221-19 Replaced by R165121320, R165121420, etc.
Besides Rexroth Bosch, Rico als can supply other brands linear guide motion systems, such as PMI, ABBA, THK, CSK, HIWIN, INA, IKO, etc.
