R162381320 Bosch-Rexroth Size 20 Ball Runner Block KWD-020-SLS-C1-H-1

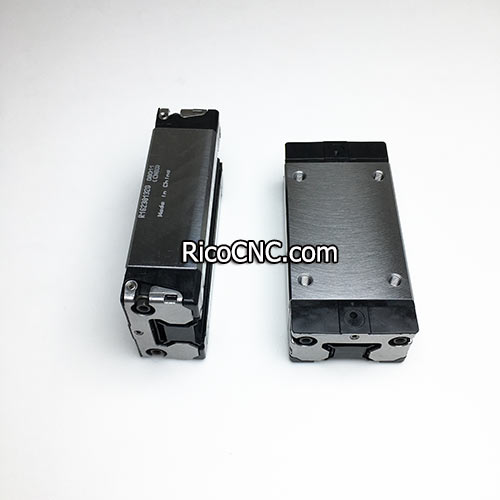

This R162381320 is a Bosch Rexroth Ball Runner Block, SLS, Size 20, Steel CS, Accuracy High, Low Preload Linear guider, model KWD-020-SLS-C1-H-1.

R162381320 Ball Rail Runner Block Features:
• Area of application: For restricted space in transverse direction
• Low noise level and outstanding travel behavior
• The same high load ratings in all four main directions of loading
• Limitless interchangeability as all Ball Rail Systems can be combined at will with all Ball Runner • Block versions within each accuracy class.
• Very high torque load capacity
• Long-term lubrication is possible over several years
Rexroth R162381320.jpg

R1623 dimensions.png

KWD-020-SLS-C1-H-1 Linear Carriage Additional Information:

Weight [kg]

0.45

Size [mm]

20

A [mm]

44

H [mm]

30

B [mm]

91

E1 [mm]

32

E2 [mm]

50

Preload class

C1 - moderate preload

Accuracy class

H - high

Seal type

SS - standard seal, Without ball chain

B1 [mm]

65.6

H1 [mm]

25.35

S2

M5

T [mm]

60

A2 [mm]

20

H2 [mm]

20.55

N6 [mm]

13.2

S5 [mm]

6

Load capacity C [N]

29600

Load capacity C0 [N]

41800

Load moment Mt [Nm]

380

Load moment Mt0 [Nm]

540

Load moment ML [Nm]

340

Load moment ML0 [Nm]

490

Brand

Bosch-Rexroth

Size 20 Ball Rail Runner Block.jpg
The R1623 block model list of can be replaced (Same Size, Different Accuracy Class and Preload):

Size

Accuracy
  class

Part numbers for runner blocks

up to approx.
  10 um clearance

Preload
  0.02 C

Preload
  0.08 C

Preload
  0.13 C

20

P

-

R162381220

R162382220

R162383220

H

R162389320

R162381320

R162382320

-

N

R162389420

R162381420

R162382420

-

R 162381320 bearing.jpg


RicoCNC supplies a range of linear guide block and rails brands such as Rexroth, INA, THK, HIWIN, PMI, ABBA, STAF, etc. All are original motion products.
Bosch Rexroth Ball Runner Block SLS.jpg

If any need of CNC machine parts, welcome to contact us.
SLS - R1623 block.jpg
