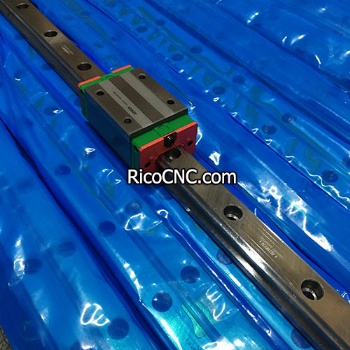

HGR25 with Linear Guide Blocks HGH25CA.jpg

Linear Motion Components HIWIN Linear Guide Rail HGR25 with Linear Guide Blocks HGH25CA

RicoCNC offers many linear motion components, Hiwin linear block and guide rails, BOSCH-REXROTH ball linear rail systems, TBI motion linear rail guides, THK linear rail guides, INA linear guide rails with balls, NSK linear guide rails with balls, Schneeberger linear rails with balls, ABBA, PMI etc.

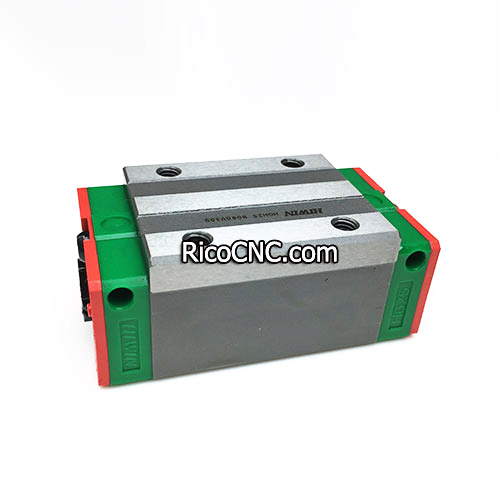

Hiwin HGH25CA Square Carriage.jpg

Linear motion is the most basic of all motion. Linear ball bearings provide linear movement in one direction. Linear Bearings slide rails move on a linear axis in a straight line.
Linear bearing slide rails provide accurate, stable, and smooth linear guidance under a wide range of speeds, loads, conditions and space requirements. Linear bearings are used in applications that require linear motion of heavy weights in a repeatable motion.  It is widely used in a lot of machines, PLC machine, CNC machines, such as CNC routers, CNC milling machine, CNC center, CNC robotics, CNC laser, CNC plasma, CNC waterjet, CNC EDM machines, etc.

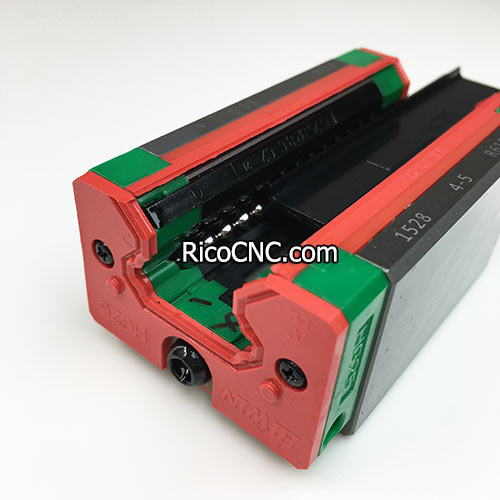

linear bearings and rails.jpg

25mm linear guide rail HGR25 with linear guide blocks HGH25CA, These products are known for their high performance, long service life, perfect finishing and user-friendly installation. The HGR25 Linear Rail has great performance and capability of making very accurate and stable CNC Machines.
HGH25CA linear block.jpg

HGH25CA Linear Guideway Block

Make

Hiwin

Model

HGH25CAZAC

Series

HG

Block Style

H: Square

Block Size

25 mm

Load Type

C: Heavy  Load Type

Mount

A: Mount from top

Preload

ZA: Medium

Precision Code

C: Normal Accuracy



Linear motion components.jpg
HGR25R linear guide rail

Make

Hiwin

Model

HGR25RXXXC

Seri

HG

Rail Type

R: Interchangeable

Rail Diameter

25mm

Mount Type

R: Mount from top

Rail Length

220mm to 4000mm

Precision Code

C: Normal Accuracy

Pitch

60mm

Distance to End

20mm

HGR series linear guide rail.jpg
HG series linear guideways are designed with load capacity and rigidity higher than other similar products with circular-arc groove and structure optimization. It features equal load ratings in the radial, reverse radial and lateral directions, and self-aligning to absorb installation-error. Thus, HIWIN HG series linear guideways can achieve a long life with high speed, high accuracy and smooth linear motion.

Hiwin HGH and HGW blocks and HGR Rails Features:
(1) High positional accuracy
When a load is driven by a linear motion guideway, the frictional contact between the load and the bed desk is rolling contact. The coefficient of friction is only 1/50 of traditional contact, and the difference between the dynamic and the static coefficient of friction is small. Therefore, there would be no slippage while the load is moving.
(2) Long life with high motion accuracy
With a traditional slide, errors in accuracy are caused by the counter flow of the oil film. Insufficient lubrication causes wear between the contact surfaces, which become increasingly inaccurate. In contrast, rolling contact has little wear; therefore, machines can achieve a long life with highly accurate motion.
(3) High speed motion is possible with a low driving force
Because linear guideways have little friction resistance, only a small driving force is needed to move a load.This results in greater power savings, especially in the moving parts of a system. This is especially true for the reciprocating parts.
(4) Equal loading capacity in all directions
With this special design, these linear guideways can take loads in either the vertical or horizontal directions. Conventional linear slides can only take small loads in the direction parallel to the contact surface. They are also more likely to become inaccurate when they are subjected to these loads

We can supply HG series guide blocks and rail as below:
Dimension of blocks of HGH series:

HGH block dimensions


Series/ size

Installation dimensions [mm] H

Dimensions of the block [mm]

Dynamic load rating Cdyn [N]*

Static load rating Co [N]

W

B

C

Li

L

M xl

HGH15CA

28

34

26.0

26

39.4

61.4

M4 x 5

11380

16970

HGH20CA

30

44

32.0

36

50.5

77.5

M5 x 6

17750

27760

HGH20HA

30

44

32.0

50

65.2

92.2

M5 x 6

21180

35900

HGH25CA

40

48

35.0

35

58.0

84.0

M6 x 8

26480

36490

HGH25HA

40

48

35.0

50

78.6

104.6

M6 x 8

32750

49440

HGH30CA

45

60

40.0

40

70t0

97.4

M8x10

38740

52190

HGH30HA

45

60

40.0

60

93.0

120.4

M8x10

47270

69160

HGH35CA

55

70

50.0

50

80.0

112.4

M8x12

49520

69160

HGH35HA

55

70

50.0

72

105.8

138.2

M8 x 12

60210

91630

HGH45CA

70

86

60.0

60

97.0

139.4

M10x17

77570

102710

HGH45HA

70

86

60.0

80

128.8

171.2

M10x17

94540

136460

HGH55CA

80

100

75.0

75

117.7

166.7

M12x18

114440

148330

HGH55HA

80

100

75.0

95

155.8

204.8

M12x18

139350

196200

HGH65CA

90

126

76.0

70

144.2

200.2

M16x20

163630

215330

HGH65HA

90

126

76.0

120

203.6

259.6

M16x20

208360

303130


Standard and Maximum Lengths of Rail

HIWIN linear guideway


Item

HG15

HG20

HG25

HG30

HG35

HG45

HG55

HG65

Standard Length L(n)

160

220 (4)

220 (4)

280 (4)

280 (4)

570 (6)

780 (7)

1,270 (9)

220 (4)

280

280

440 (6)

440 (6)

885 (9)

1,020 (9)

1,570 (11)

280

340 (6)

340 (6)

600

600

1,200(12)

1,260(11)

2,020 (14)

340 (6)

460

460

760(10)

760(10)

1,620 (16)

1,500(13)

2,620(18)

460

640 (11)

640(11)

1,000(13)

1,000(13)

2,040 (20)

1,980 (17)


640 (11)

820(14)

820(14)

1,640 (21)

1,640(21)

2,460 (24)

2,580 (22)


820(14)

1,000(17)

1,000(17)

2,040 (26)

2,040 (26)

2,985 (29)

2,940 (25)



1,240 (21)

1,240(21)

2,520 (32)

2,520 (32)






1,600(27)

3,000 (38)

3,000 (38)




Pitch (P)

60

60

60

80

80

105

120

150

Max. Standard Length

1,960(33)

4,000 (67)

4,000 (67)

3,960 (50)

3,960 (50)

3,930 (38)

3,900 (33)

3,970 (27)

Max. Length

2,000

4,000

4,000

4,000

4,000

4,000

4,000

4,000


Slides Blocks HGH25CA.jpg

RicoCNC offers a wide range of linear motion systems and automation components including linear rails, linear bearings, linear guides.

Welcome to contact us if any inquires for CNC machine parts!
