THK SSR20XV Linear Guide Bearing Block Linear Motion Guide

THK SSR20XV Linear Guide Bearing Block Linear Motion Guide

• THK SSR20XV
• THK Linear Bearing Block
• THK Linear Motion System SSR series
• Linear Motion SSR20XV
• THK SSR20XV Slider SSR20 Linear guide
• THK Linear motion guide LM block SSR20XV
• 20 mm Rail ball bearing
• THK linear guide block
INQUIRY

THK SSR20XV Linear Guide Bearing Block Linear motion guide

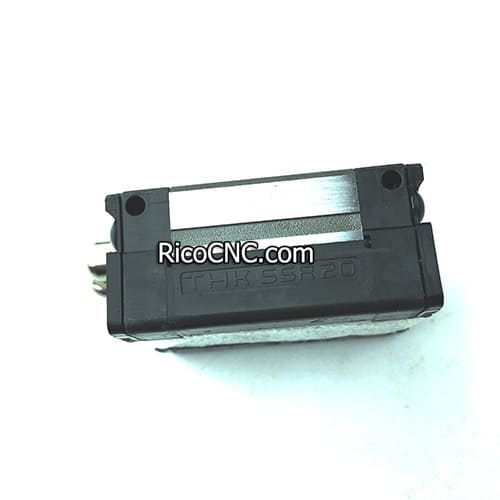

This is a linear guide bearing block, SSR series, model number is SSR20XV , 2omm rail ball bearing.

Linear Motion SSR20XV.jpg

THK SSR20XV .jpg

Application of THK THK SSR20XV

1. THK SSR20XV THK’s linear motion system helps to provide a guide device that enables this precision and speed to be realized.

2. THK SSR20XV In order to repeat the production of this advanced product, the LM guide and ball screw in the milling machine guide system which don’t waste of action

3. The LM guide and ball screw are indispensable for the movement of the tool section of the lathe because of its high rigidity and high precision.

4. By combining LM guides and ball screws with lubrication parts, we can reduce system design work and assembly steps, and extend the interval needed for maintenance.

5. Frequent earthquakes have caused great concern among residents in some regions. The vibration control system of THK THK SSR20XV can help solve the problem.

The system is based on the application technology of LM guide ball screw. It can provide protection to people's life and life in earthquake. The system can not only prevent the damage caused by the earthquake, but also reduce people's panic because of its omnipresent, reliable and durable.

THK Linear motion guide LM block SSR20XV.jpg THK Linear Bearing Block.jpg

Specification of SSR XV series:

Model No.	Outer dimensions			Block dimensions		Rail dimensions		Basic load rating
	Outer dimensions			Block dimensions		Rail dimensions		Radial
	Height	Width	Length	B	S x l	Pitch	d₁xd₂xh	Dynamic	Static
	M	W	L			F		rating	rating
								C	C₀
	mm	mm	mm	mm	mm	mm	mm	kN	kN
SSR15XV	24	34	40.3	26	M4 x 7	60	4.5x7.5x5.3	9.1	9.7
SSR20XV	28	42	47.7	32	M5 x 8	60	6x9.5x8.5	13.4	14.4
SSR25XV	33	48	60	35	M6 x 9	60	7x11x9	21.7	22.5
