R165371420 Bosch Rexroth Ball Rail Runner Carbon Steel Block

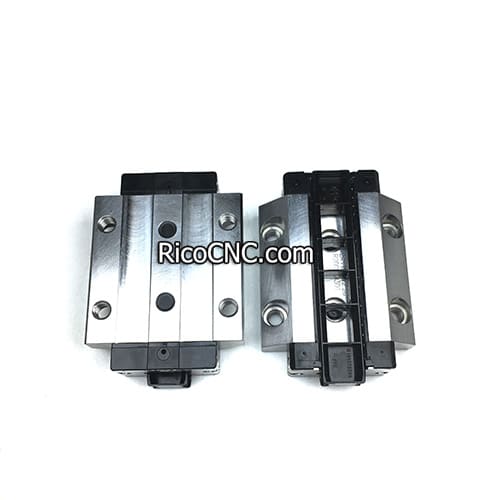

This Bosch Rexroth ball rail runner block R165121320 is a Ball runner block, FLS, size 30, steel CS, accuracy standard, low preload, without ball chain.
R165371420 block specification:
Nominal size [mm] | 30 |
Format | FLS - flanged, long, standard height |
Ball chain | Without ball chain (standard) |
Material (profiled rail systems) | Carbon steel |
Preload class | C1 - Low preload |
Accuracy class | N - normal |
Self-aligning for compensation of misalignments | Without self-alignment |
Width of runner block [mm] | 90 |
Length of runner block [mm] | 119.7 |
Height of runner block [mm] | 35.35 |
Height of runner block with guide rail [mm] | 42 |
Lubrication | With initial lubrication and preservation |
Dynamic load capacity C [N] | 46000 |
Footnote dynamic load capacity C | Determination of the dynamic load capacities and load moments is based on a 100 000 m travel as per DIN ISO 14728-1. Often only 50 000 m are actually stipulated. For comparison: Multiply values C, Mt and ML from the table by 1.26. |
Dynamic torsional moment load capacity Mt footnote | Determination of the dynamic load capacities and load moments is based on a 100 000 m travel as per DIN ISO 14728-1. Often only 50 000 m are actually stipulated. For comparison: Multiply values C, Mt and ML from the table by 1.26. |
Static longitudinal moment load capacity ML0 [Nm] | 1080 |
Static torsional moment load capacity Mt0 [Nm] | 1160 |
Max. acceleration amax [m/s²] | 500 |
Note: Max. acceleration amax | If Fcomb◡> 2.8 • Fpr : amax = 50 m/s2 |
Maximum permissible linear speed vmax [m/s] | 5 |
Dynamic torsional moment load capacity Mt [Nm] | 800 |
Dynamic longitudinal moment load capacity ML [Nm] | 740 |
Dynamic longitudinal moment load capacity ML footnote | Determination of the dynamic load capacities and load moments is based on a 100 000 m travel as per DIN ISO 14728-1. Often only 50 000 m are actually stipulated. For comparison: Multiply values C, Mt and ML from the table by 1.26. |
Seal | SS – Standard seal |
Static load rating C0 [N] | 66900 |
Permissible ambient temperature | -10 °C ... +80 °C |
Footnote permissible ambient temperature (min ... max) | 100 °C admissible for short time. For operation at negative temperatures, please consult us. |
Friction coefficient μ | 0,002 ... 0,003 |
Footnote friction coefficient μ | Without friction of seal |
Pitch T guide rail [mm] | 80 |
Weight [kg] | 1.56 |
• Area of application: For the most demanding rigidity requirements
• Significantly reduced frictional oscillations and low friction force level, particularly under external load
• Excellent dynamic characteristics
• Maximum precision
• Patented entry zone increases the travel accuracy up to a factor of six
• Long-term lubrication is possible over several years
• Lube fittings with metal threads on all sides
• End-face fastening thread for all attachments
• Integrated all-round sealing
• High torque load capacity
• Different preload classes
• High rigidity in all load directions – permits applications with just one runner block per rail
• Improved rigidity under lift-off and side loading conditions due to two additional mounting screw holes at the center of the ball runner block
• Maximum system rigidity due to preloaded O-arrangement
• Optional integrated, inductive and wear-free measuring system
• Attachments on the ball runner block can be mounted from above and below
• Can be used on all SNS/SNO ball guide rails
• The same high load ratings in all four main directions of loading
• Ball runner block pre-lubricated at the factory
