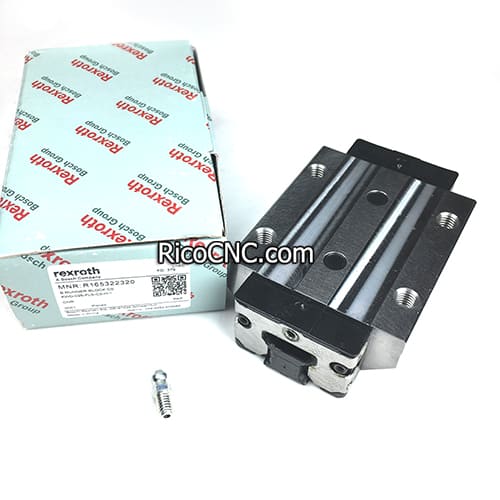

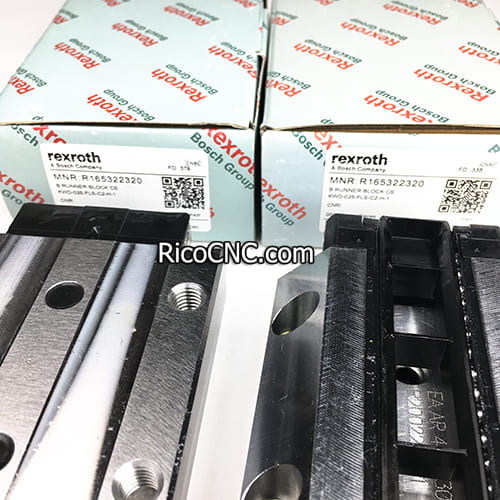

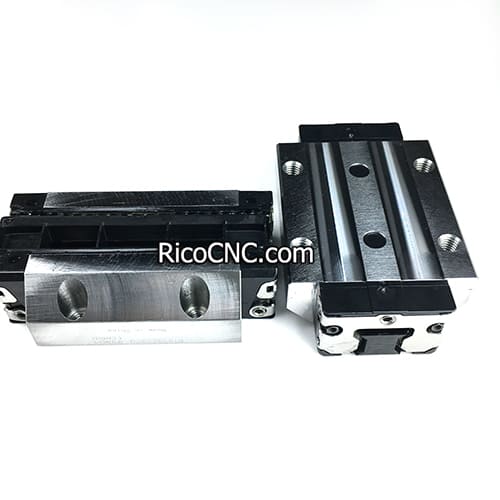

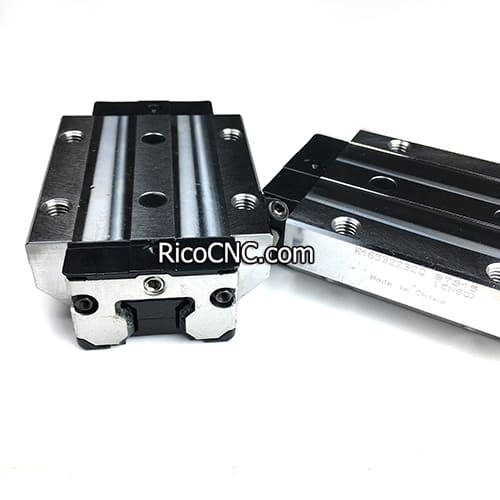

R165322320 KWD-025-FLS-C2-H-1 Rexroth Runner Block
This Rexroth R165322320 KWD-025-FLS-C2-H-1 is a Ball runner block, FLS, size 25, steel CS, accuracy high, average preload, without ball chain.
R165322320 ball bearing specifications:
| Height of runner block | 29.9 mm |
| Permissible ambient temperature | -10 °C ... +80 °C |
| Format | FLS - flanged, long, standard height |
| Self-aligning for compensation of misalignments | Without self-alignment |
| Ball chain | Without ball chain (standard) |
| Height of runner block with guide rail | 36 mm |
| Static load rating C0 | 52500 N |
| Preload class | C2 - Medium preload |
| Accuracy class | H - Highly accurate |
| Runner block or guide rail | Runner block |
| Width of runner block | 70 mm |
| Length of runner block | 107.9 mm |
| Linear guide type | Ball rail system |
| Dynamic load capacity C | 37300 N |
| Material (profiled rail systems) | Carbon steel |
| Preload force | 2430 N |
| Lubrication | With initial lubrication and preservation |
| Seal | SS – Standard seal |
| Permissible ambient temperature (max) | 80 °C |
| Permissible ambient temperature (min) | -10 °C |
| Nominal size | 25 |
Rexroth Runner block R165322320 Features:
• Lube fittings with metal threads on all sides
• The same high load ratings in all four main directions of loading
• Patented entry zone increases the travel accuracy up to a factor of six
• Excellent dynamic characteristics
• Maximum precision
• Different preload classes
• Integrated all-around sealing
• High torque capacity
• Can be used on all SNS/SNO Ball Guide Rails
• Significantly reduced frictional oscillations and low friction level, particularly under external load
