R165132320 Ball Runner Block Carbon Steel KWD-035-FNS-C2-H-1

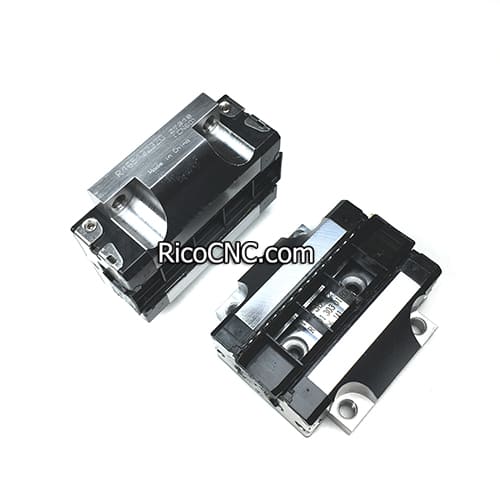

This is a linear guide block from Bosch Rexroth, it is a RUNNER BLOCK CS KWD-035-FNS-C2-H-1 R165132320, it is a state-of-the-art linear motion ball guide designed for applications requiring high precision and rigidity. The block belongs to the Ball Guide System product family. It is a Ball runner block, FNS, size 35, steel CS, accuracy high, average preload, without ball chain.

BALL RUNNER BLOCK CARBON STEEL KWD-035-FNS-C2-H-1.jpg

Bosch Linear Motion.jpg

R165132320 Bosch Rexroth Ball Rail Runner Block specifications:

Nominal size [mm]35
FormatFNS - flanged, normal, standard height
Type of constructionBall runner block High Precision
Ball chainWithout ball chain (standard)
Material (profiled rail systems)Carbon steel
Preload classC2 - Medium preload
Accuracy classH - Highly accurate
SealSS - Standard seal
Self-aligning for compensation of misalignmentsWithout self-alignment
Width of runner block [mm]100
Length of runner block [mm]110.5
Height of runner block [mm]40.4
Height of runner block with guide rail [mm]48
LubricationWith initial lubrication and preservation
Dynamic load capacity C [N]51800
Static longitudinal moment load capacity ML0 [Nm]1130
Static torsional moment load capacity Mt0 [Nm]1740
Max. acceleration amax [m/s²]500
Maximum permissible linear speed vmax [m/s]5
Dynamic torsional moment load capacity Mt [Nm]1110
Dynamic longitudinal moment load capacity ML [Nm]720
Static load rating C0 [N]80900
Permissible ambient temperature-10 °C ... +80 °C
Footnote permissible ambient temperature (min ... max)100 °C admissible for short time. For operation at negative temperatures, please consult us.
Friction coefficient μ0,002 ... 0,003
Footnote friction coefficient μWithout friction of seal
Pitch T guide rail [mm]80
VersionBall rail system

BRL-LT R165132320.jpg


BRL-LT R165132320 Linear guide block features:

Patented entry zone increases the travel accuracy up to a factor of six

Maximum precision

Pre-lubricated for faster installation

Multiple lubrication ports for auto lubrication design flexibility

Integral, all-round sealing for superior contamination protection

Comprehensive range of accessories for easy customization

Unlimited interchangeability due to standardized guide rail for all runner block versions for reduced inventory

Long term lubrication, up to several years for less maintenance

Excellent dynamic characteristics: Vmax 5 m/s: Amax up to 500 m/s2 to meet most application demands

KWD-035-FNS-C2-H-1 FNS.jpg

R165132320 Bosch Rexroth Ball Rail Runner Block.jpg

RicoCNC supplies a range of linear guide block and rails brands such as Rexroth, INA, THK, HIWIN, PMI, ABBA, STAF, etc. All are original motion products.
