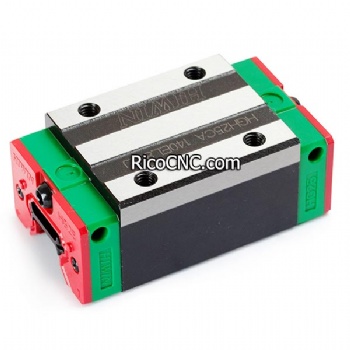

Hiwin HGH25CA square carriage.jpg

Hiwin HGH25CA Square Linear Guide Rail Block Carriage for Guideway Rail HGR25

This square carriage is HGH25CA from Hiwin, it is linear slide bearings 23x48x40mm. It fits for HIWIN HGR and HGT profile rails. HGH25CA linear guide rail block is widely used on CNC machines such as CNC routers, CNC milling machines, CNC laser, CNC plasma machines, and other industrial linear motion systems.

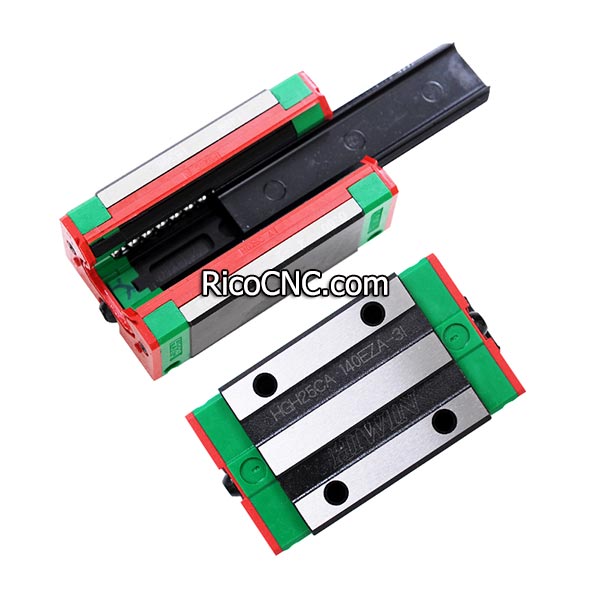

HGH25 slide block.jpg

Type: Linear guideway block
Model: HGH25CA
Size: 25 mm
Block Type: Square
Load Type: Heavy Load
Block Mounting Type: from Top
Block Height: 40 mm
Block Width: 48 mm
Block Length: 84 mm
Thread Size: M6 x20
Basic dynamic load rating: 34.9 kN
Basic static load rating: 52.82 kN
Block Weight: 0.51 kg
Rail Width: 23 mm
Rail Height: 22 mm
Condition: New

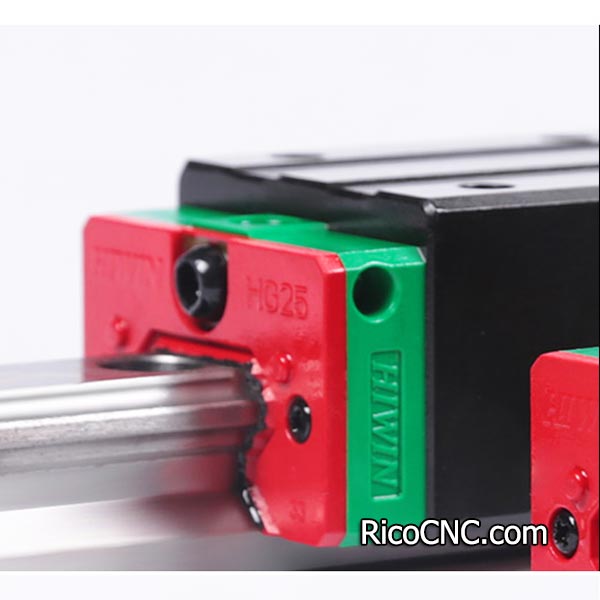

HIWIN HGH25CA linear guideway block.jpg

Hiwin HG series HGH 25 CA Linear guideways are designed with load capacity and rigidity higher than other similar products with circular-arc groove and structure optimization. It features equal load ratings in the radial, reverse radial and lateral directions, and self-aligning to absorb installation error. Thus, HIWIN HG series linear guideways can achieve a long life with high speed, high accuracy, and smooth linear motion.

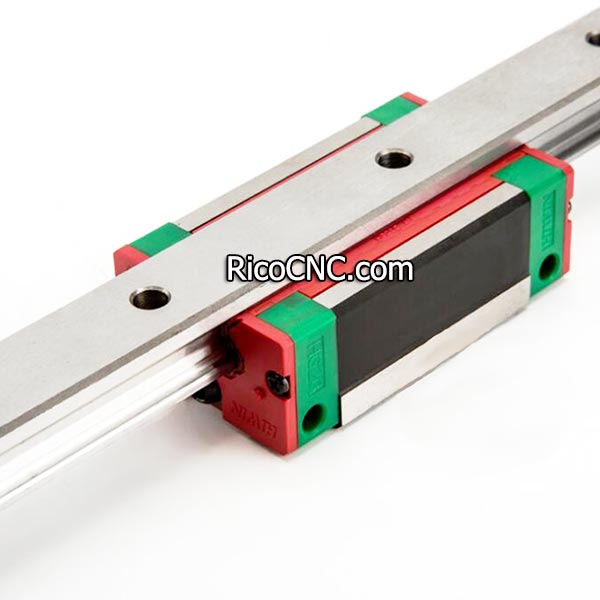

HGH25CA slider block.jpg

Other HGH linear blocks are available here:

HGH15CA

HGL15CA

HGW15CA

HGW15CB

HGW15CC

HGH20CA

HGL20CA

HGW20CA

HGW20CB

HGW20CC

HGH20HA

HGL20HA

HGW20HA

HGW20HB

HGW20HC

HGH25CA

HGL25CA

HGW25CA

HGW25CB

HGW25CC

HGH25HA

HGL25HA

HGW25HA

HGW25HB

HGW25HC

HGH30CA

HGL30CA

HGW30CA

HGW30CB

HGW30CC

HGH30HA

HGL30HA

HGW30HA

HGW30HB

HGW30HC

HGH35CA

HGL35CA

HGW35CA

HGW35CB

HGW35CC

HGH45CA

HGL45CA

HGW45CA

HGW45CB

HGW45CC

HGH45HA

HGL45HA

HGW45HA

HGW45HB

HGW45HC

HGH55CA

HGL55CA

HGW55CA

HGW55CB

HGW55CC

HGH55HA

HGL55HA

HGW55HA

HGW55HB

HGW55HC

HGH65CA

HGL65CA

HGW65CA

HGW65CB

HGW65CC

HGH65HA

HGL65HA

HGW65HA

HGW65HB

HGW65HC

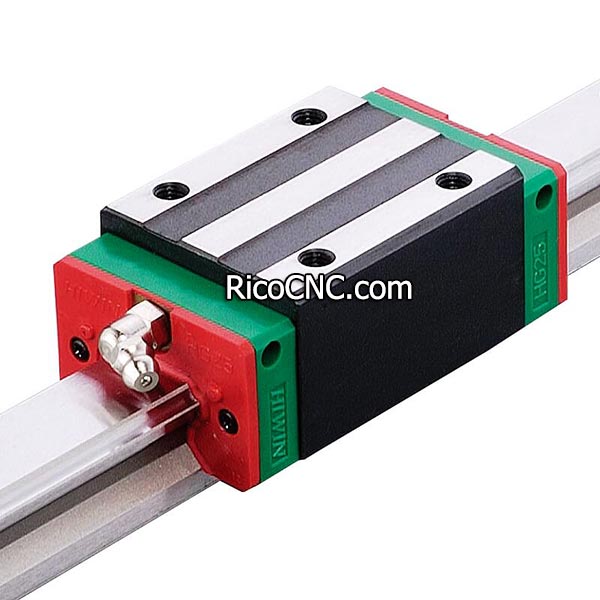

HGH25CA linear guide rail block.jpg

If any needs for CNC spare parts, welcome your inquiry, a big range of linear bearing guide blocks and rails are availabler here.
