MSA30LSSSFCN PMI MSA30LSSSFC Linear Guide Carriage for CNC Machines

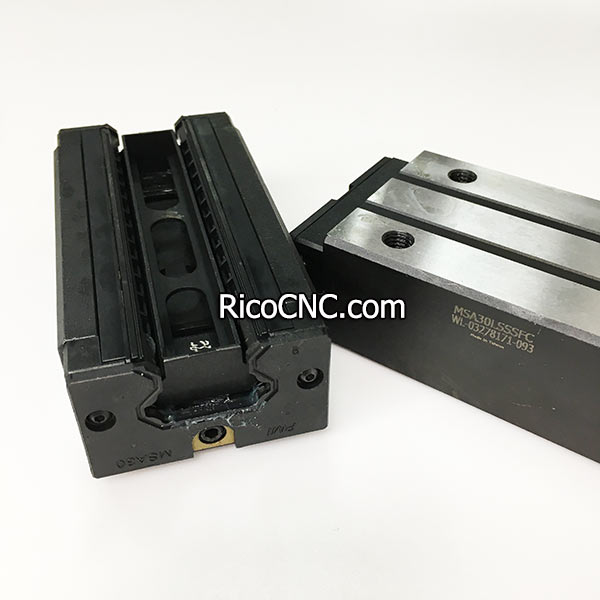

This linear guide carriage is Taiwan brand PMI linear bearing, model MSA30LSSSFC, size 37x60x119.2mm, widely used in CNC machines and linear motion systems.
Square slide PMI-MSA30LS SSFC.jpg

This linear guide block is long life, high precision and speed high precision, smooth linear motion, low friction, low noise, and easy to install and remove and still be able to use it next time.
bearing Taiwan PMI MSA30LSSSFC.jpg

Structure of square slider MSA30SSSFC / MSA30LSSSFC:
• High-frequency quenched steel rail is easy to match the rail to the ball, high strength, high wear resistance
• Lubrication and grease system integrated in the ball
• Good anti-dust system
• On the ball 4 holes for firmly screwing
• Equal 4-way load
Full ball bearing MSA30LS.jpg

PMI slider specifications , slider MSA30SSSFC / MSA30LSSSFC
• Slider size MSA30S / MSA30LS PMI: H45xW60xL97 / H45xW60xL119.2

MSA30LSSSFCN Linear Carriage Specifications

Carriage Model Number

MSA30LSSSFCN

Country of  Origin

TAIWAN

Carrige Load Type

Heavy Load

Height (mm)

37

Width (mm)

60

Length (mm)

119.2

Grease Nipple

G-M6

Carraige Weight  (KG)

1.12KG

Dust Protection

SS / UU / ZZ / DD / KK / LL / RR

Preload

FC (Light) ; F0 (Medium) ; F1   (Heavy)

Accuracy Grade

N ; H ; P ; SP ; UP

MSA30LSSSFC N Linear Guide Rail Specifications

Width (mm)

28

Height (mm)

26

Pitch (mm)

80

Rail Weight (KG/m)

4.8KG/m

MSA30LSSSFC linear guide carriage.jpg

PMI linear bearing application:
Often used in large mechanical machines because of its high load capacity, mechanical CNC machines need high precision, heavy duty industrial wood machine, wood CNC machines or plasmas.

Linear bearings carriage MSA30LS.jpg

For the PMI MSA slider can be used in smaller machines, automatic robots with suitable loads.
PMI MSA slider is suitable for heavy industrial machinery and equipment with large load capacity, smooth and quiet operation and high productivity. Use quick move easily!
PMI MSA30LSSSFCN blocks.jpg

RicoCNC also supplies a range of linear guide block and rails brands also bearings such as Rexroth, INA, THK, HIWIN, PMI, ABBA, STAF, NSK, NTN, FAG, etc. All are original motion products.
Heavy Load MSA30LS.jpg

If any need of CNC machine parts, welcome to contact us.
