4011040619 4-011-04-0619 Electric Solenoid Valve

4011040619 4-011-04-0619 Electric Solenoid Valve

• 4011040619 Electric valve
• 4-011-04-0619 valve
• Electric valve 3/2 0-10 BAR 24 V DC
• Aventics 0820048002
• HOMAG valve coil
• HOMAG Directional valve
• DO16-3/2NC-IS15-024DC-MOI
• 0820048002 SOLENOID VALVE
INQUIRY

4011040619 4-011-04-0619 Electric Solenoid Valve

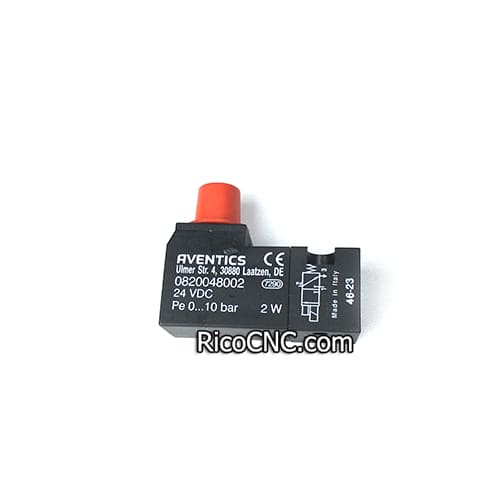

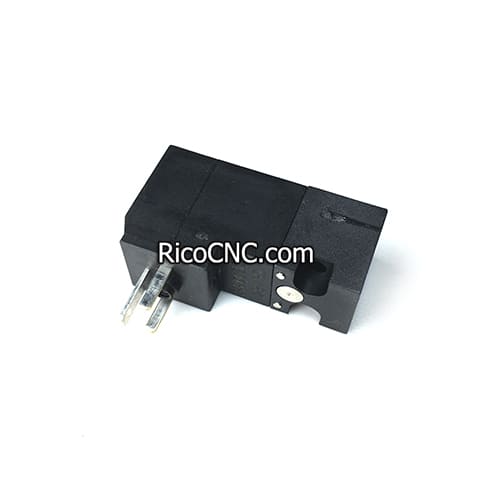

This is an electric solenoid valve from Aventics, it always use for HOMAG machine, the Homag part number is 4011040619 or 4-011-04-0619. It is a 3/2-directional valve, series D016, AVENTICS 0820048002, DO16-3/2NC-IS15-024DC-MOI.

4011040619 Electric valve specification:

Model number	0820048002
Frame size	DO16
Switching principle	3/2, with spring return
Valve function	NC
Manual override	without detent
Nominal flow Qn	25 l/min
Operational voltage	24 V DC
Voltage tolerance DC	-10%/+15%
Working pressure min.	0 bar
Working pressure max	10 bar
Electrical connection type	Plug
Protection class with connection	IP65
Sealing principle	soft seal
Power consumption DC	2 W
Duty cycle	100%
Min. ambient temperature	-10 °C
Max. ambient temperature	50 °C
Housing material	polyphenylene sulfide, Polyamide fiber-glass reinforced
