4011041389 4-011-04-1389 Pneumatic Directional Valve for HOMAG

4011041389 4-011-04-1389 Pneumatic Directional Valve for HOMAG

• 4011041389 directional valve
• 4-011-04-1389 electric valve
• 0820055501 control valve
• 0820055501 Aventics Pneumatic Directional Valve
• HF03 - 5/2DS - 024DC
• Directional Spool Valve
• Homag pneumatic valve
• Aventics HF03-LG series
INQUIRY

4011041389 4-011-04-1389 Pneumatic Directional Valve for HOMAG

This is an electrical pneumatic directional valve made by AVENTICS, the part number is 0820055501, it is Aventics HF03-LG series, HF03 - 5/2DS - 024DC, with R422004023 Solenoid Valve coil. It is used for the HOMAG machine, the HOMAG part number is 4011041389 or 4-011-04-1389.

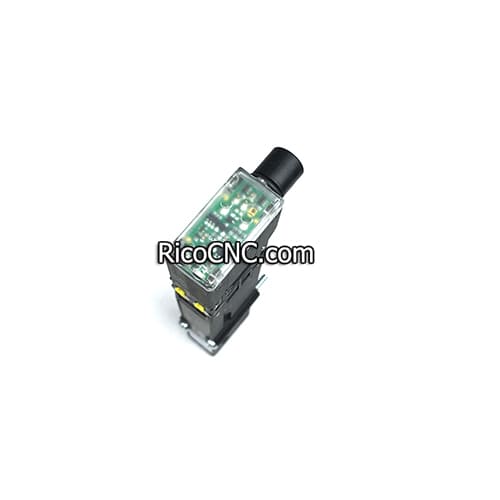

4-011-04-1389 electric valve.jpg

4-011-04-1389 Pneumatic Directional Valve Features

• Modular design with up 32 valves and 32 coils

• Flow up to 850 liters/minute

• Pilot-operable valves, 0.35 W per coil

• Plastic base plate and end plates for optimized weight

• Can be directly mounted on assembly system profiles

• High connection availability via Multipol or fieldbus connection

• High level of connectivity through Multipol or fieldbus connections Integrated fittings and all connections pointing in one direction

0820055501 Aventics Pneumatic Directional Valve.jpg

AVENTICS 5/2-directional valve, Series HF03-LG 0820055501 specifications:

Activation	Electrically
Switching principle	5/2, double solenoid
Actuating control	Double Solenoid
Manual override	with detent
Pilot	External
Operational↩voltage	24 V DC
Voltage tolerance DC	-0.75
Power consumption DC	0.35 W
Nominal flow Qn	850 l/min
Min. working pressure	-0.9 bar
Max. working pressure	10 bar
Reverse polarity protection	Protected against polarity reversal
Sealing principle	16 mm, Soft seal
Duty cycle	100%
Typ. switch-on time	13 ms
Typ. switch-off time	15 ms
Certificates	UR (Underwriters Laboratories) ‒ pilot valve only
Min. ambient temperature	0 °C
Max. ambient temperature	50 °C
Housing material	Polyamide fiber-glass reinforced

Directional Spool Valve.jpg

Homag pneumatic valve.jpg

Rico supply various control valves for HOMAG, such as:

4011041579 Directional Valve 4-011-04-1579 AVENTICS Electric valve 0820060501 F

4011041280 4-011-04-1280 Electric Valve AVENTICS 0820060771

4-011-04-1578 4011041578 Weeke Solenoid Valve 0820060026

4-011-04-1718 4011041718 Electric Valve AVENTICS Solenoid Valve 0820058026

4-011-04-1279 4011041279 Homag KAR Pneumatic Directional Valve AVENTICS 0820060761

etc.

0820055501 control valve.jpg

RicoCNC can offer a range of electrical components and other related spare parts for Biesse, Homag, SCM, Anderson, Busellato, DMS, CR Onsrud, Komo Machinery, IMA, Brandt, Intermac, Laguna Tools, Morbidelli, Northwood, Weeke, Multicam, Techno, Masterwood, Felder, Holz-her, Greda Sirio, Thermwood, CNT Motion, Flexicam, etc.
