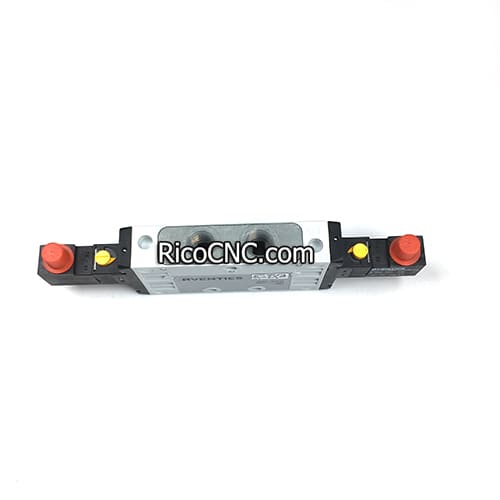

4011041628 4-011-04-1628 HOMAG Solenoid Operated Air Control Valve

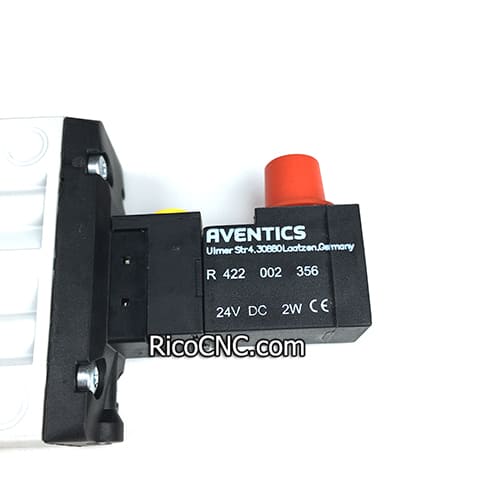

This Aventics Pneumatic Directional Valve is Series TC15, TC15-5/2XX-DO-024DC-I-FORM_C-SGL, part number is 0820058501, 1/4" Valve, 5-Port/2-Position, Double Solenoid, 24VDC, Internal Pilot, DIN Form C Connection, BSPP Threads, Inline Version. It is used for HOMAG machine, HOMAG part number is 4011041628 or 4-011-04-1628.

4011041628 control valve.jpg

4-011-04-1628 HOMAG Solenoid Operated Air Control Valve Features:

• Large selection of electrical connections

• Electrical or pneumatic operated

• Excellent ratio of installation space and flow rate

• Long service life

• Adjustable coil with four 90° positions

AVENTICS 0820058501.jpg

Aventics Pneumatic Directional Valve 0820058501 specifications:


Flow Direction4-Way
Flow Rate52.97 cfm

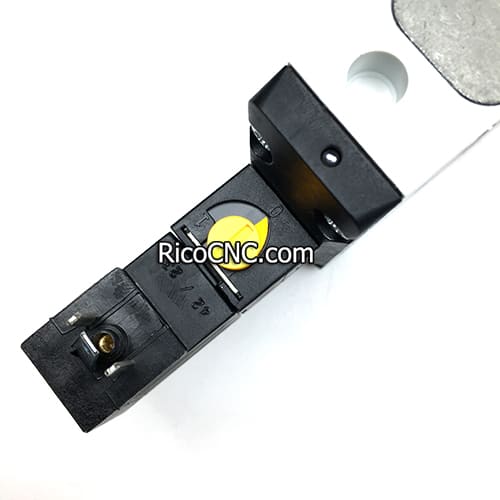

Manual Operation TypeLocking
Maximum Operating Pressure145 psi
Number Of Ports5
Number Of Positions2
Operating MediumAir
Solenoid Electrical EntryM8 Connector
Solenoid Supply Voltage24 V dc
Compressed air connection outputG 1/4
Min. working pressure2 bar
Max. working pressure10 bar
Min. ambient temperature-10 °C
Max. ambient temperature50 °C

Aventics Pneumatic Directional Valve.jpg



Rico also supplies other control valves:

4011041579 Directional Valve 4-011-04-1579 AVENTICS Electric valve 0820060501

4-011-04-1486 4011041486 Directional Valve 5725650220

4011041280 4-011-04-1280 Electric Valve AVENTICS 0820060771

4-011-04-1578 4011041578 Weeke Solenoid Valve 0820060026

4-011-04-1718 4011041718 Electric Valve AVENTICS Solenoid Valve 0820058026

4-011-04-1279 4011041279 Homag KAR Pneumatic Directional Valve AVENTICS 0820060761

etc.

Series TC15 Directional valve.jpg

RicoCNC is a reliable source for CNC spare parts, woodworking machine replacements and automation parts.
