Short Stroke Pneumatic Cylinder FESTO 188177 ADVC-25-5-I-P

Short Stroke Pneumatic Cylinder FESTO 188177 ADVC-25-5-I-P

• ADVC-25-5-I-P
• Short-stroke cylinder ADVC-25-5-I-P
• FESTO cylinder
• ADVC-25-5-I-P Pneumatic cylinders
• FESTO 188177
• ADVC255IP
• Compact air cylinders
• 188177 ADVC-25-5-IP Festo
INQUIRY

Short Stroke Pneumatic Cylinder FESTO 188177 ADVC-25-5-I-P

This Festo ADVC-25-5-I-P is a short-stroke double-acting single-ended piston rod pneumatic air cylinder with elastic cushioning at both ends, it is Festo ADVC series, part number #188177, with 25mm bore (B25mm), 5mm stroke (S5mm), M5 female threaded rod, M5 threaded pneumatic port, Anodized wrought Aluminium alloy housing, Nitrile rubber (NBR), thermoplastic polyurethane (TPE-U(PU)) static seals, Rated for +1...+10bar, round cylindrical shape, equivalent to ADVC255IP.

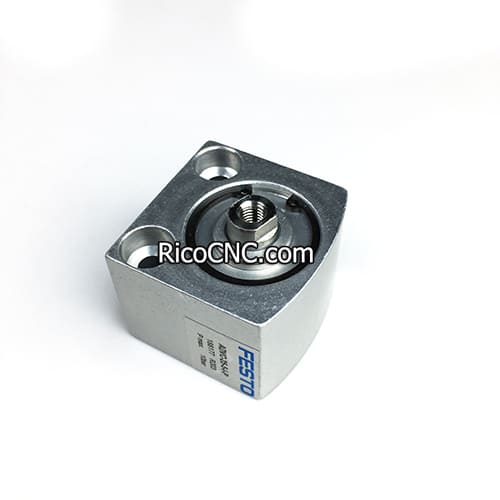

ADVC-25-5-I-P Pneumatic cylinders.jpg

188177 ADVC-25-5-IP Festo specification:

Model number	ADVC-25-5-I-P
SKU	188177
Stroke	5 mm
Mode of operation	double-acting
Piston diameter	25 mm
Cushioning	P: Flexible cushioning rings/plates at both ends
Design structure	PistonPiston rod
Operating pressure	1 … 10 bar
Operating medium	Compressed air in accordance with ISO8573-1:2010 [7:4:4]
Note on operating and pilot medium	Lubricated operation possible (subsequently required for further operation)
Ambient temperature	‘-20 … 80 °C
Theoretical force at 6 bar, return Stroke	247 N
Housing material	Wrought aluminum alloy Anodized
Piston rod material	High-alloy steel

There are also ther ADVC series cylinders can be supplied:

ADVC-20-10-I-P 188146

ADVC-12-10-I-P 188091

ADVC-16-10-A-P 188124

ADVC-50-25-A-P 188275

ADVC-4-5-A-P 188055

Etc.

Rico supply FESTO electric actuators, servo drivers and motors, I/O systems and controllers, digital engineering tools, automation suite electric motion sizing, etc.

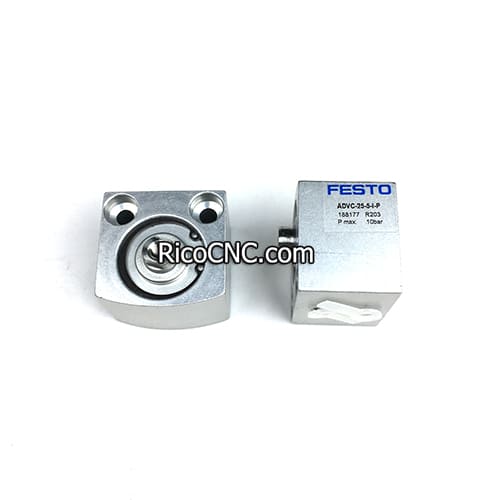

Compact air cylinders.jpg
