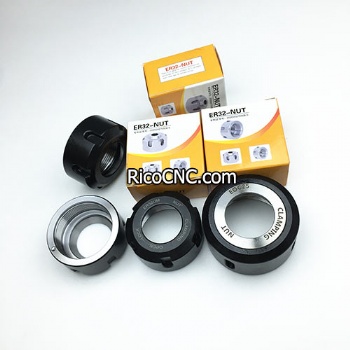

ER OZ EOC GER SK Type Collet Clamping Nut for CNC Milling Chuck Holder

These collet nuts are for tool holders and spindles collets clamping. There are several types ER, SYOZ, EOC, GER, SK, etc. They are standard sizes.
Collet Locknut.jpg

Clamping Nuts Feature:
• The tool holder nuts are made of high-quality chromium-molybdenum steel with hardness
between HRC 46 and 52 degrees and accuracy within 0.005 mm.
• After hardening, the finished thread of the roughing truck is rust-proof on the surface, with exquisite appearance and durability.
• High Precision Clamping Nut The concentricity and precision of nuts are high, which meets the higher requirements of processed products.
• The machine tool processing accuracy and tool life are improved.
• High precision, good wear resistance, stable performance, and reasonable price.
ER25UM ER32UM ER40UM ER50UM Collet Clamping Nut .jpg

The commonly used ER types of tool holder nuts are:

ER-A type, ER-M type, ER-UM type, ER-B type.

  A type

Outside

Pitch

M type

Outside

Pitch

Diameter

of Thread

Diameter

of Thread

ER8A

12.0mm

M10*0.75

ER8M

12.0mm

M10*0.75

ER11A

19.0mm

M14*0.75

ER11M

16.0mm

M13*0.75

ER16A

28.0mm

M22*1.5

ER16M

22.0mm

M19*1.0

ER20A

34.0mm

M25*1.5

ER20M

28.0mm

M24*1.0



 UM type

Outside

Pitch

 B type

Outside

Pitch

Diameter

of Thread

Diameter

of Thread

ER25

42.0mm

M32*1.5

ER16B

24.5mm

M19*1.0

ER32

50.0mm

M40*1.5

ER20B

34.0mm

M24*1.0

ER40

63.0mm

M50*1.5




ER32 collet nut.jpg

OZ (EOC) clamping nut

Size

D(mm)

L(mm)

T

EOC6

18

14

M14X1

EOC8

26

19

M20X1.5

EOC10

30

19

M22X1.5

EOC12

35

20

M27X1.5

EOC16

43

24

M33X1.5

EOC20

50

28

M42X2

EOC25

60

30

M48X2

EOC32

72

33.5

M60X2.5

EOC40

85

37

M68X2.5

EOC50

100

43

M80X2.5

GER clamping nut

Size

D

L

M

GER16

30

24.7

M22x1.5

GER20

35

25.5

M26x1.5

GER25

40

25.9

M32x1.5

GER32

48

26.6

M40x1.5

SK clamping nut

Size

D

L

M

SK06

20

21.3

M15.5*1

SK10

28

24

M21.5*1

SK16

40

31

M32*1.5

SK25

55

37.5

M45*1.5

Collet Nut for tool holder.jpg


Collet Nut Insertion Procedure:
1. Insert the collet at an angle, fitting the two extractor teeth which protrude A (figure 1) into the collet's groove (figure 2).
2. Place the two parts on a clean and horizontal work surface, press down with your thumb on the back end of the collet until it clicks into place (figure 3).
Spindle nut installation.JPG

Extraction Procedure
1. Place the nut on your right hand, push the top of the collet with a middle finger towards the mark on a nut, to let A site of the nut completely insert the collet groove (figure 4). At the same time, the left hand tightly holds the nut, the thumb pulls the bottom of the collet at the mark direction (figure 5), to make one side of the collet out of the nut (figure 6).
2. Slightly rotating collet to remove it from the nut.
3. Please use a screwdriver instead if necessary (figure 7).
Collet nut installation.JPG

RicoCNC supplies a range of metalworking tool holders, collet, collet nut, toolholder forks spares, cnc spare parts, and toolings, etc.
