DEUBLIN 1121-205-201 Rotary Union for HYUNDAI WIA Machine

DEUBLIN 1121-205-201 Rotary Union for HYUNDAI WIA Machine

• DEUBLIN 1121-205-201
• Rotary union for HYUNDAI WIA Machine
• DEUBLIN rotary joint
• Single passage for coolant or MQL
• Deublin 1121-205-201 Union
• Coolant rotary union
• 1121-205-201 High Speed Rotating Union
• DEUBLIN Rotary Union
INQUIRY

DEUBLIN 1121-205-201 Rotary Union for HYUNDAI WIA Machine

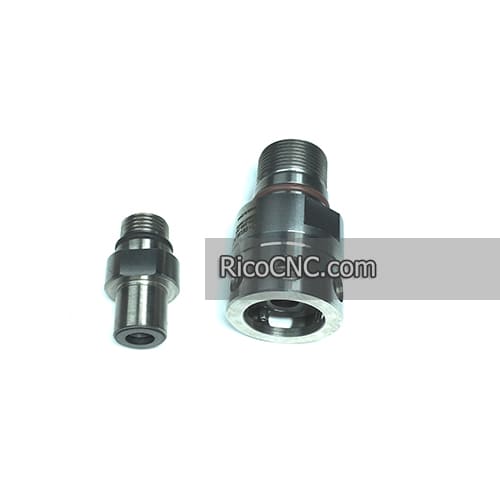

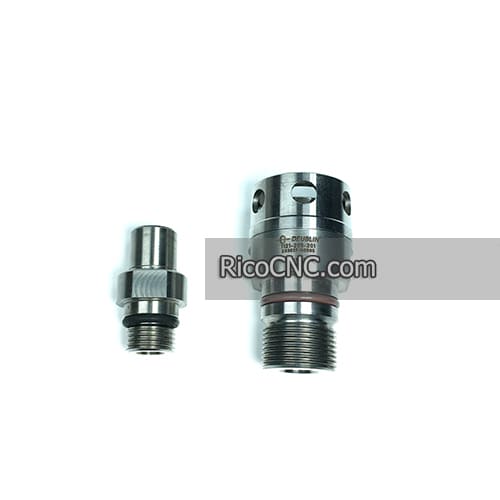

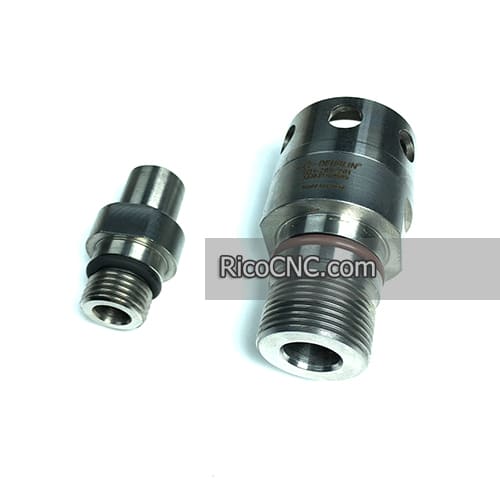

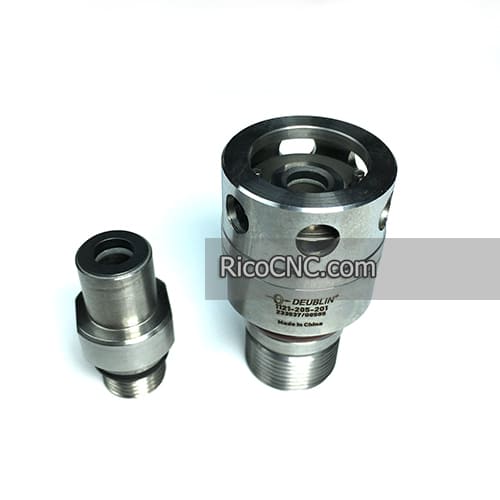

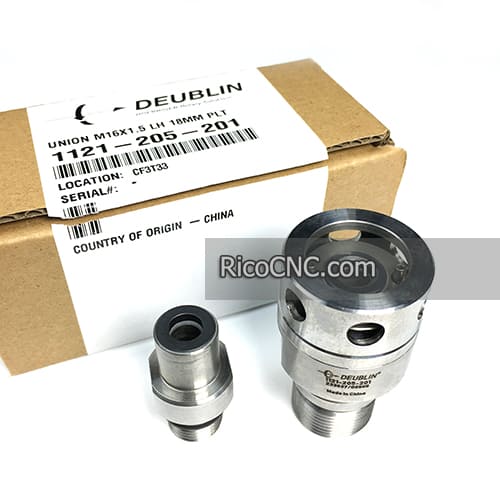

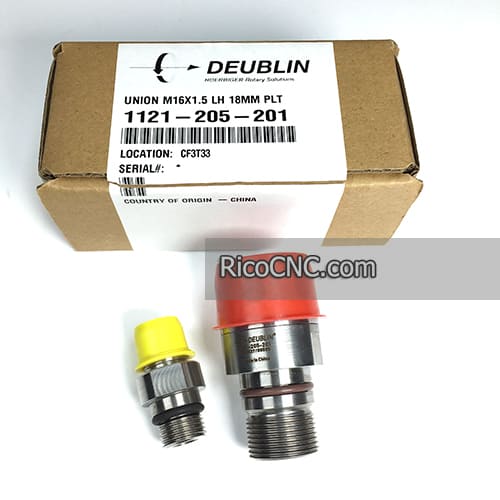

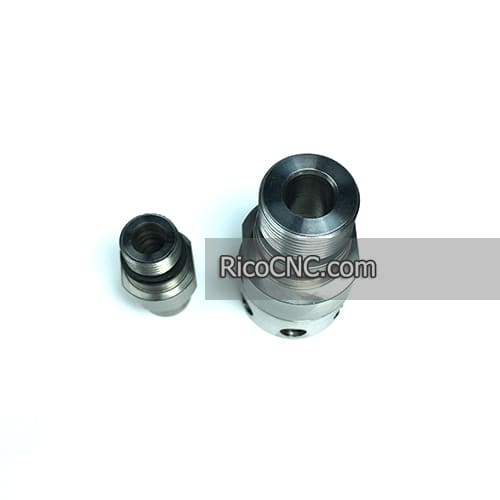

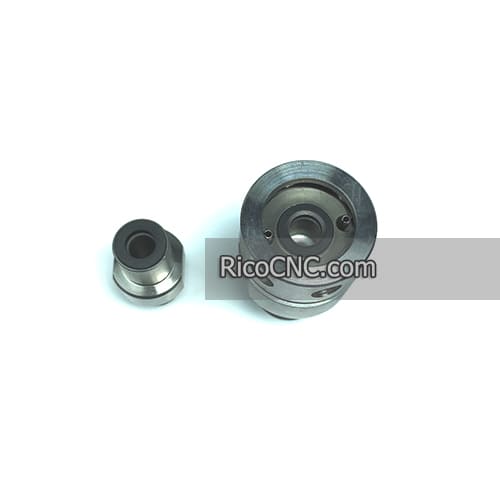

This is a Bearingless pop-off union M16 — 1.5 LH. 18mm pilot. M24 × 1.5 metric thread rotary union from DEUBLIN, it is used for HYUNDAI WIA Machine.

1121-205-201 High Speed Rotating Union.jpg

coolant rotary union.jpg

DEUBLIN 1121-205-201 technical data:

Media	MQL, Coolant
Rotor Connection	M16x1.5 LH, 17.993 mm pilot
Housing Connection	M24x1.5 Metric Thread
Coolant Max. Flow	24.3 l/min
Coolant Max. Pressure	140 bar
Coolant Max. Temperature	71 °C
MQL Max. Flow	608 l/min
MQL Max. Pressure	10 bar
MQL Max. Temperature	71 °C

Deublin 1121-205-201 Union.jpg

DEUBLIN rotary joint.jpg

1121-205-201 features:

• Single passage for coolant or MQL

• Pop-Off™ technology allows unlimited dry running without media pressure

• Ultra-short 0.1 mm pop-off stroke restricts drainage of residual coolant during tool change

• Full-flow design has no obstructions to trap swarf or debris

• Balanced mechanical seals made from silicon carbide for long life even under difficult operating conditions

• Anodized aluminum housing resists corrosion

Rotary union for HYUNDAI WIA Machine .jpg
