FESTO Rotary Distributor 539290 GF-1/8-M5 Single Rotary Joint

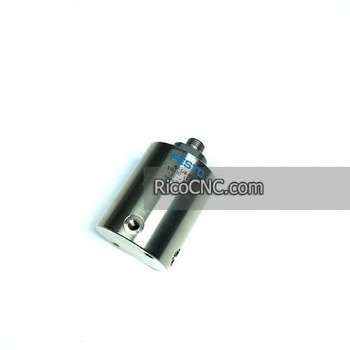

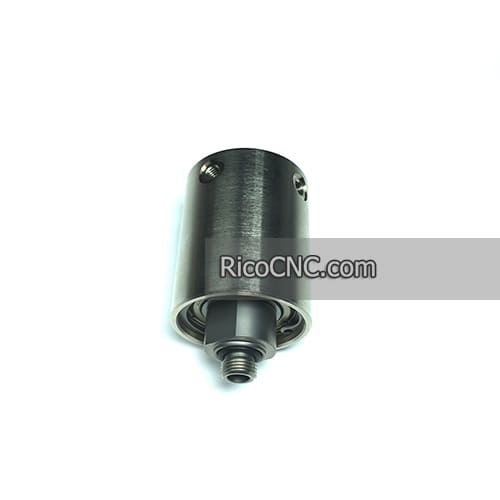

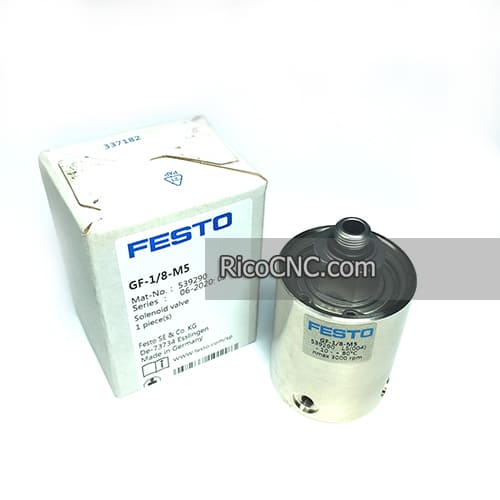

This is a round single through feed rotary joint from FESTO, the part number is 539290 GF-1/8-M5.
Specifications of FESTO 539290 Rotary Distributor:
| Nominal size | 4.1 mm |
| Mounting position | optional |
| Operating pressure complete temperature range | -0.095 MPa ... 1 MPa |
| Operating pressure complete temperature range | -0.95 bar ... 10 bar |
| Operating pressure complete temperature range | -13.775 psi ... 145 psi |
| Standard flow rate 1-2.1 (6->0) | 490 l/min |
| Standard flow rate 1-2.X open (6->0) | 2250 l/min |
| Max. rotational speed | 3000 rpm |
| Operating medium | Compressed air |
| Water (liquid, ice-free) | |
| Ambient temperature | -10 °C ... 80 °C |
| Max. tightening torque | 1.95 Nm |
| Max. axial force | 50 N |
| Max. radial force | 150 N |
| Nominal torque | 1.22 Nm |
| Tolerance for nominal tightening torque | ± 20% |
| Product weight | 400 g |
| Pneumatic connection, port 1 | G1/8 |
| Pneumatic connection, port 2 | M5 |
| Material housing | Brass, nickel-plated |
| Material shaft | High-alloy steel |
Rotary distributor GF features:
• 2 or 4 axial and radial outlets
• Single or multiple rotary distributor
• Operating medium: compressed air, vacuum
• Brass, hardened steel
Single rotary through-feed (round design):
539290 GF-1/8-M5
539291 GF-1/4-1/8
539292 GF-1/2-1/4
Single rotary through-feed (angular design):
2094 GF-1/4
2095 GF-3/8
multiple rotary through-feeds:
539287 GF-1/8-2
539288 GF-1/4-2
539289 GF-1/2-2
