Bright BT40DIN Spindle Clamping Gripper BP Series

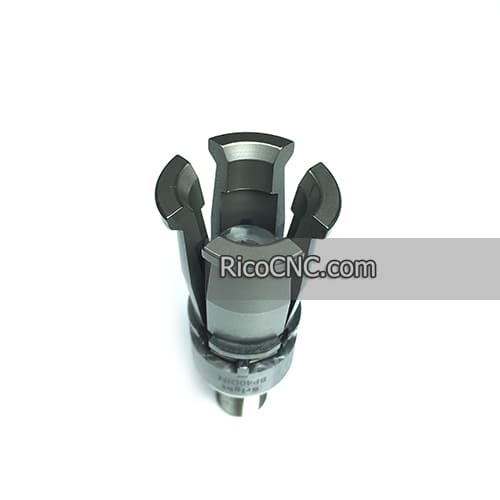

This is a Bright brand spindle clamping gripper with force amplication, model number is BP40DIN male type.
Bright BP series gripper Design Feature:
• Achieve better dynamic characteristics with less amounts of disc springs or shorter length of spring.
• The stress for Spindle bearing is smaller.
• Tool changing speed is increased.
• Pull force is increased and unclamping force is relatively less in the same limited space.
• Clamping force can be 2-3 times of spring force so it can be used in a shorter spindle.
• Higher the life expectancy of spring system
• Our gripper has more than 1.2 million times of lifetime testing cycle.
Bright BP series grippers:
Tool Interface | Pull stud | Bright Model |
MAS 403 BT30 | P3ОТ-1/2/3 | ВР30М45/60/90 |
MAS 403 BT40 | P40T-1/2/3 | BP40M45/60/90 |
MAS 403 BT50 | P50T-1/2/3 | BP50M45/60/90 |
MAS 403 BT60 | P60T-1/2/3 | BP60M45/60/90 |
DIN 69871 / SK30 | DIN 69872 A30/B30 | BP30DIN |
DIN 69871 / SK40 | DIN 69872 A40/B40 | BP40DIN |
DIN 69871 / SK50 | DIN 69872 A50/B50 | BP50DIN |
DIN 69871 / SK60 | DIN 69872 A60/B60 | BP60DIN |
ASME B5.50 CAT30 | CAT 30 | BP30CAT |
ASME B5.50 CAT40 | CAT 40 | ВР40САТ |
ASME B5.50 CAT50 | CAT 50 | BP50CAT |
There are male and female types can be choose here.
RicoCNC also supply Chumpower, TALONS, ROYAL, BERG, Doosan Daewoo grippers. DMG MORI gripper OTT, RIKEN SEIKI gripper.
Please contact us for more information!
