Diamond Jointing Cutterhead 125x64x30DKN Z3+3 SYM LEUCO Replacement

Diamond Jointing Cutterhead 125x64x30DKN Z3+3 SYM LEUCO Replacement

• DIAMAX SmartJointer airFace Jointing Cutterhead DP
• 125x64x30DKN Z3+3 SYM
• LEUCO 186048 replacement
• Diamond cutter for HOMAG edge banding machine
• exchangeable DP cutting edges
• Jointing cutter 125x64x30cm
• WhisperCut 125x64x30 Z3+3
• Pre-Mill Cutter 125x64x30 Z3
INQUIRY

Diamond Jointing Cutterhead 125x64x30DKN Z3+3 SYM LEUCO Replacement

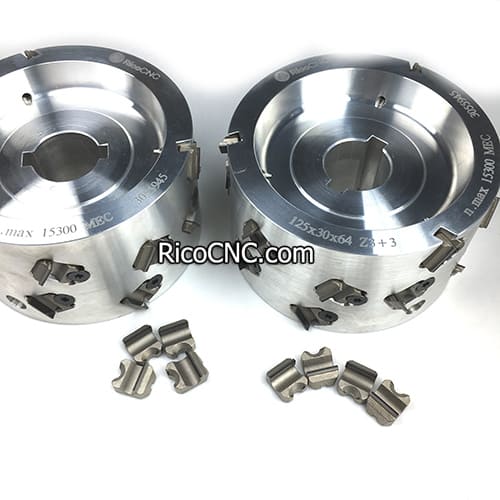

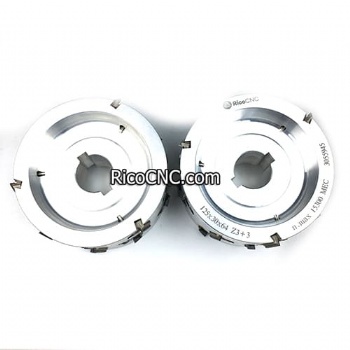

This is a LEUCO replacement diamond jointing cutter for HOMAG Edge banding machine. The size is 125x64x30DKN Z3+3, symmetrical, replace LEUCO 186048.

DP cutting edge 185974 replacement also can be supplied by Rico.

Jointing cutter 125x64x30cm.jpg

Specifications of the whisper cut 125x64x30DKN Z3+3:

Feature	Value
Ø D = Cutting circle diameter	125 [mm]
B = Cutting width	64 [mm]
b = Hub width	40 [mm]
Ø d = Bore diameter	30 [mm]
Z = No. of teeth	3+3
DKN = Double keyway	8x3,3 [mm]
Shear = Shear angle	35 [°]
nmax = maximum RPM	10,500 [min-1]
Number of cutting edges	18 [pc.]
Machine/Type	Homag
Remarks	symmetrical

DIAMAX SmartJointer airFace Jointing Cutterhead DP.jpg

Diamond cutter for HOMAG edge banding machine.jpg

Application for jump-milling units for very quiet jointing of solid wood and wood-based panels with and without coating, focusing particularly on the reduction of unbalance and noise.

LEUCO 186048 replacement.jpg

Workpiece material:

Wood composite materials

Wood-based panels

Mineral workpiece materials

Solid wood and solid wood products

Composite materials

special manufacturer materials

Metals

Plastics

exchangeable DP cutting edges.jpg

RicoCNC can offer a range of pre mill cutter heads & spare tools for Edgebanders - Homag, Biesse, Bi-Matic, OTT, Brandt, Felder, Hebrock, SCM, Holzher, IMA, KDT, Laguna, Liga, etc.

Pre-Mill Cutter 125x64x30 Z3.jpg
