Biesse 2413A0103 PARKER PXB-B3911 NC for BIESSE TECHNO FDT

• PARKER PXB-B3911
• PXB-B3911 NC valve
• Biesse air valve 2413A0103
• Air valve for BIESSE TECHNO FDT
• Pneumatic Division PXBB3911
• Normal Close valve
• Parker Pneumatic Valve
• Biesse part number 2413A0103
INQUIRY

Biesse 2413A0103 PARKER PXB-B3911 NC for BIESSE TECHNO FDT

This is a PARKER PXB series pneumatic valve, the model number is PXB-B3911, it is always used for Biesse TECHNO FDT machine, and the BIESSE part number is 2413A0103.

The PARKER PXB-B3911 Features:

• 4mm, 3/2 normally close valve functions

• Up to 3 valves or contact blocks per actuator

• Simultaneous actuation of an electrical contact and a pneumatic valve possible via electrical contact block

• Contact rating 240Vac 3A

• High quality manually operated spool valves

• Viton seals

• Suitable for positive pressure or vacuum line applications.

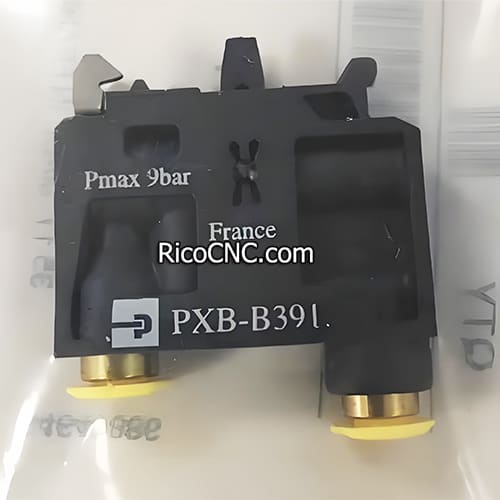

Biesse air valve 2413A0103.jpg

Biesse air valve 2413A0103 specification:

Brand	Parker
Control Mechanism	Plunger
Function	3/2
Manufacturer Series	PXB
Maximum Operating Pressure	9 bars
Maximum Flow Rate	60L/min
Minimum Operating Temperature	-15°C
Maximum Operating Temperature	+60°C
Number of Ports	3/2
