Quick Release Drill Adaptor D20x37 LH and RH for Biesse CNC Machines

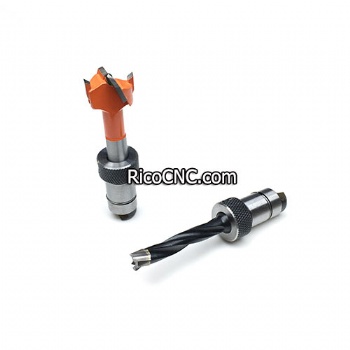

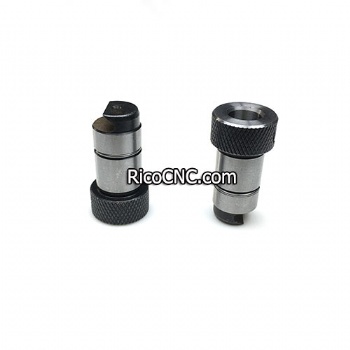

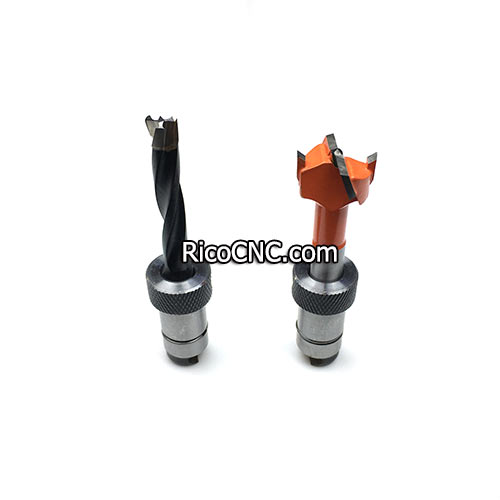

This quick drill adaptor is for Biesse machines, size is 10mm (25/64-Inch) Shank, 20mm (25/32-Inch) Diameter, length 37mm for boring bits clamping.
There are two models: 360.010.001 D20x37 Right-Hand Rotation and 360.010.002 D20x37 Left-Hand Rotation. Also called Klein model: L030.100.R and L030.100.L

360.010.001 D20x37 RH.jpg

Quick Change Drill Holders Features:
• Highly accurate.
• High-quality hardened steel.
• Quick bit exchange.
• Completely reliable.
• Perfect centering.
• Smooth rotation.
• Replace older drill types
• Quick swapping system without having to use a wrench!

These adaptors offer a modern way of replacing a dowel drill in your drilling and boring machines. Secure transition between the machine and a dowel drill. The bearing surface, thread and diameter are all important to be aware of when selecting a dowel drill adaptor.

Also we can supply below adapter for different brands machine:
The Weeke adapter.
Diameter 20/10mm 46mm long

The Biesse adapter.
Diameter 20/10mm and length 37 or 30mm

The Busellato adapter
Diameter 19/10mm and length 34.5mm

The Morbidelli adapter
Diameter 20/10mm and length 43mm

The Vitap adapter
Diameter 18/10mm and length 42mm

The Maggi, Griggio and Masterwood adapter
Diameter 20/10mm and length 40mm
Quick change drill holder.jpg

If any needs for woodworking machine parts, please contact us, thanks.
