Homag 4-011-04-1710 4011041710 Aventics R412010569 pneumatic flow control valve

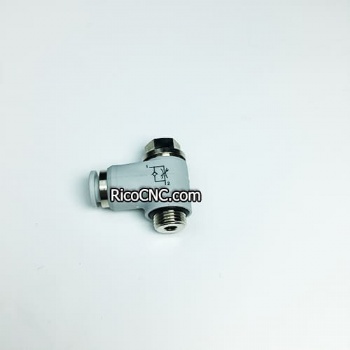

This is AVENTICS R412010569 series CC04 Check-Choke Valve, G1/8, 0.5-10bar, R412010569 CC04-G018-DA06-2 1. It can be used on Homag Brandt and weeke woodworking machines. Homag spare part number is 4-011-04-1710 or 4011041710.

Aventics pneumatic flow control valve.jpg
Technical specification of Aventics R412010569 valve:

Manufacturer

Aventics

Manufacturer Part Number

R412010569

port 1

Ø 6

throttle   bore Ø

3.5   mm

nominal flow qn 2 to 1

390 l/min

compressed   air connection type 2

external   thread

Medium

compressed air

working   pressure max

10   bar

max. ambient temperature

60 °c

max.   medium temperature

60   °c

seal material

acrylonitrile butadiene rubber

port 2

g 1/8

direction   of throttle

2   > 1

compressed air connection type 1

push-in fitting

throttle

exhaust   air throttling

working pressure min.

0.5 bar

min.   ambient temperature

-10   °c

min. medium temperature

-10 °c

Housing   Material

polyamide

material compressed air connection

brass

AVENTICS R412010569 check choke valve.jpg


A range of AVENTICS flow check valves are available in RicoCNC

R412010564
R412010565
R412010568
R412010569
R412010570
R412010571
R412010572
R412010573
R412010574
R412010575
R412010576
R412010577
R412010578

EMERSON R412010569.jpg

RicoCNC can offer Weeke Spare Parts, Brandt Spare Parts, Homag Spare Parts, Holzma spare parts, etc. If you are looking for Homag woodworking machine parts, welcome to contact us!

Aventics R412010569 flow control valve.jpg

Aventics R412010569 valve.jpg
