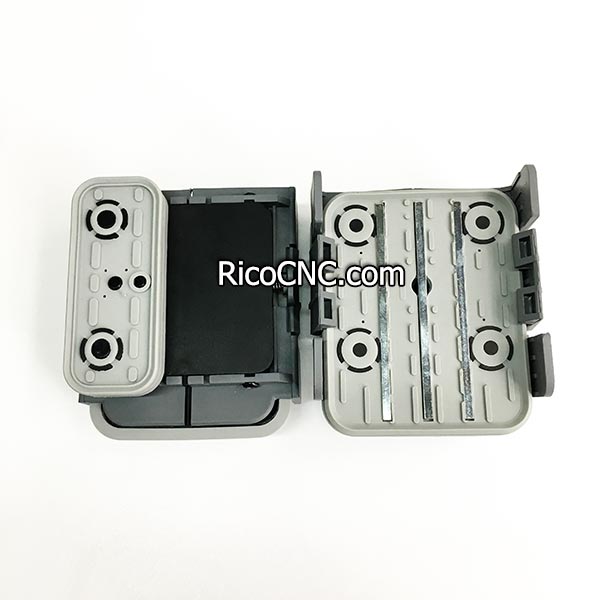

120x50x50 vacuum cups.jpg

VCBL-K1 120x50x50 R Lengthways Vacuum Suction Cup for Schmalz 1-circuit Console CNC

This VCBL-K1 120x50x50 R lengthway vacuum pod is a height of 50mm 1-circuit consoles vacuum suction cup. VCBL-K1 120x50x50 R is the longways vacuum block for narrow parts clamping, used with Weeke/Homag/Holz-Her and other PTP CNC machine centre with pod and rail table.

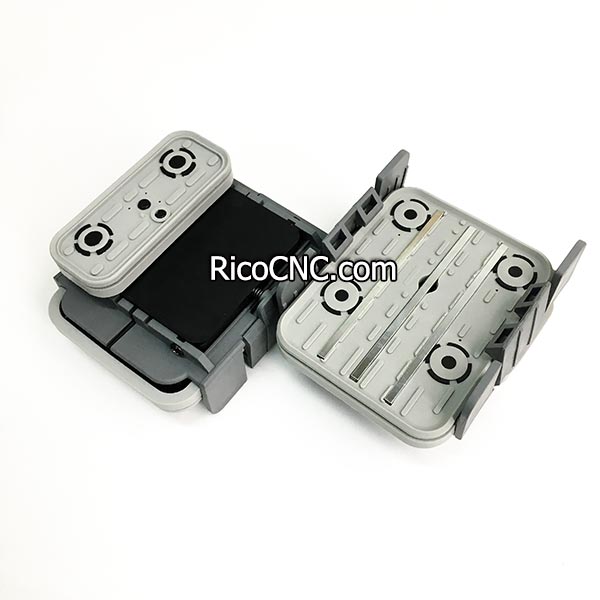

Schmalz lengthway vacuum pods.jpg

VCBL-K1 120x50x50 R vacuum pod parameters:
VCBL-K1 120x50x50 R
Block vacuum for 1-circuit console Schmalz
Top dimensions (LxW): 120 x 50 mm
Base suction cup: 140x115mm
Height H: 50 mm
Arrangement: lengthways

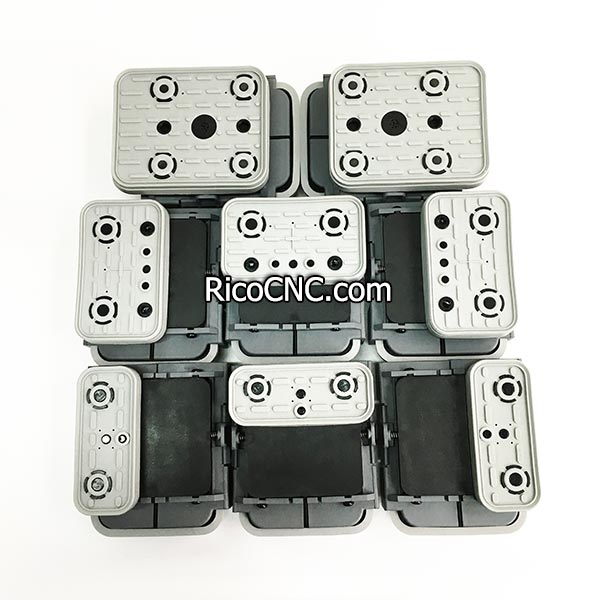

Holz-Her vacuum cups.jpg

VCBL-K1 120x50x50 R 1-circuit beams from Schmalz (1 row of valves along the beam) vacuum suction cups work with Homag, Weeke, CMS, IMA, Masterwood, Felder, HolzHer, Reichenbacher, Busellato, Format 4, Anderson and many others console table. Woodworking pod and rail vacuum cup support for fixing workpieces to the console table for workpiece clamping.
VCBL-K1 120x50x50 R.jpg

The VCBL-K1 120x50x50 R vacuum cup comes with a complete entire set.
Also, the top rubber pads 10.01.12.00012 and bottom vacuum pads 10.01.12.00228 are available as replacements.

120x50 vacuum block.jpg

The 10.01.12.00770 VCBL-K1 120x50x50 Q and 10.01.12.00769 VCBL-K1 120x50x50 L vacuum blocks also are available here.
Holzher vacuum blocks.jpg

A range of CNC vacuum suction replacement pods and rubber pads for Homag, Weeke, Holz-Her, Biesse, SCM, Format 4, Excitech, Masterwood, and other brands woodworking machines for sale here. RicoCNC is a reliable source for CNC & Woodworking machine spare parts, welcome to contact us.
