BMH1002P16F2A Schneider Electric Lexium 32 AC Servo Motor

BMH1002P16F2A Schneider Electric Lexium 32 AC Servo Motor

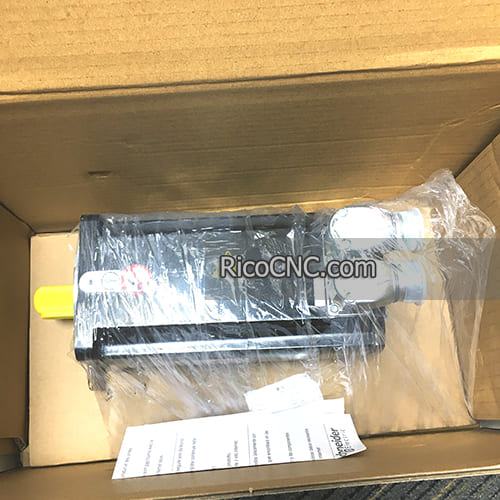

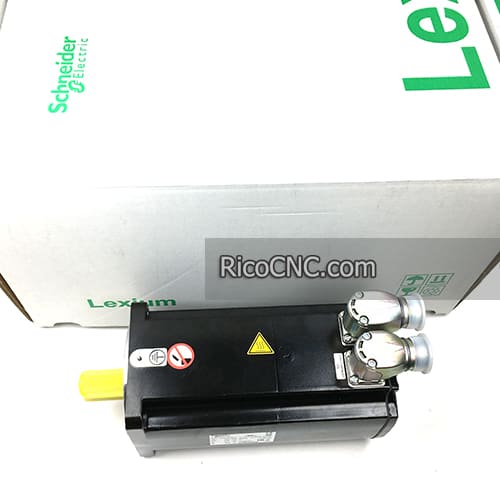

This is a Schneider Electric servo motor BMH series, the model number is BMH1002P16F2A, Lexium 32, 6.2Nm, 6000rpm, keyed shaft, with brake, IP54, 16bit encoder.

Specifications of BMH1002P16F2A motor:

BMH1002P16F2A Schneider Electric AC servo motor Features:

• Three book-size servo drive models and two servo motor families plus a full range of intelligent options

• Lexium 32 simplifies all aspects in the machine life cycle from engineering to maintenance

• A speed bandwidth of 1,600 Hz provides outstanding response

• With a power density of 548 W/l Lexium 32 packs maximum power into minimum volume

• Powerful integration software simplifies the entire process from planning to commissioning

• The new Autotuning function makes tuning easier than ever before

• Lexium 32 offers a host of features for rapid installation and maintenance

• Lexium 32 supports a wide selection of interfaces for fast integration into architectures

• Communication boards, encoder options and accessories adapt your Lexium 32 solution

• Leverage the full power of existing assets such as applications or legacy motors

• "Safe Torque Off" on board (IEC/EN 61800-5-2) for shorter downtime and less wiring

• The optional enhanced safety module eSM frees you from the hassle of devising complex, proprietary safety concepts. Access to SS1, SS2, SOS and SLS safety functions (IEC/EN 61800-5-2)

• With holding brake

• 1600 W LXM32.D18N4 6 A, 400 V, three phase1600 W LXM32.D18N4 6 A, 480 V, three phase nominal output power

• Without second shaft end second shaft

• 1.18 in (30 mm) key width

• Single turn SinCos Hiperface feedback type

• 3.94 in (100 mm) motor flange size

• 77 V/krpm 248 deg F (120 deg C) back emf constant

RicoCNC can supply Both servo drive and servo motors with many brands such as Mitsubishi, ToAuto, Delta, Panasonic, Fuji, etc.

Please contact us for more information!
