Yaskawa SGMJV-04ADD6S AC Servo Motor Sigma 5 Seires

Yaskawa SGMJV-04ADD6S AC Servo Motor Sigma 5 Seires

• SGMJV-04ADD6S
• Yaskawa Servo Motor 400W
• Ac Servo Motor SGMJV-04ADD6S
• SGMJV04ADD6S
• Yaskawa Sigma 5 Servo Motor
• SGMJV-04ADD6S Yaskawa
• Rotary Brushless Servo Motor
• Yaskawa Servo Motor SGMJV
INQUIRY

Yaskawa SGMJV-04ADD6S AC Servo Motor Sigma 5 Seires

This motor is AC servo motor, made by YASKAWA, it is SIGMA 5 series SGMJV-04ADD6S. The motor Output rate is 400W, currency rate is 2.7A. Yaskawa's SGMJV Rotary Servo Motor series is a small capacity brushless servomotor can be used in a variety of applications.

Specifications of AC servo motor SGMJV-04ADD6S:

Brand	YASKAWA
Product	Rotary Servo motor
Series	SIGMA 5
Model	SGMJV-04ADD6S
Frequency	50HZ/60HZ
Rated Current	2.7A
Instantaneous Max. Current	9.3A
Rated Power	400W
Rated Torque	1.27N.m
Instantaneous Peak Torque	4.46N.m
Rated Speed	3000rmp
Max speed	6000rpm

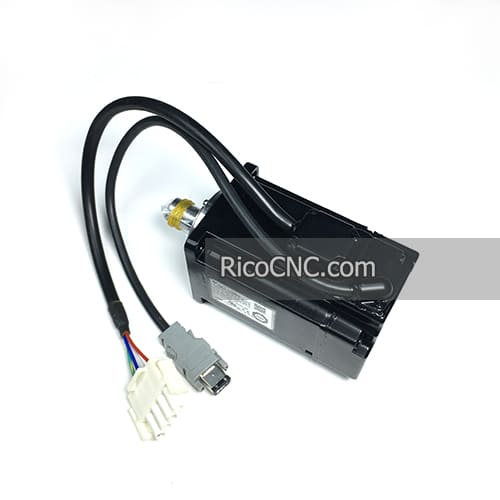

Ac Servo Motor SGMJV-04ADD6S.jpg

SGMJV Sigma-5 rotary servo motors Highlights:

• Medium inertia

• Instantaneous peak torque (350% of rated torque)

• Mounted high resolution serial encoder: 13, 20 bit

• Maximum speed: 6,000 rpm

• Wide selection: 50W to 750W capacity, holding brake and gear options

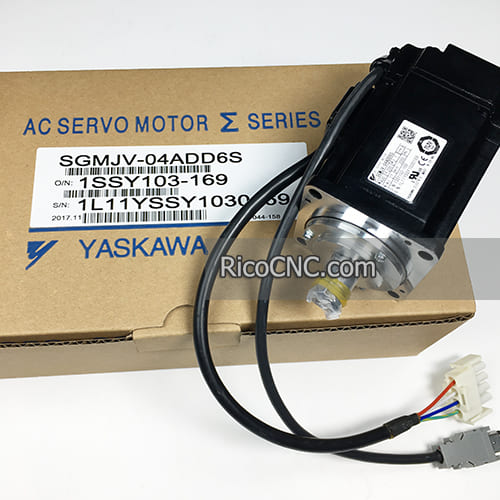

Yaskawa Sigma 5 Servo Motor.jpg

Sigma 5 sereis have SGMJV, SGMAV, SGMEV, SGMGV, SGMSV.

SGMJV-04ADD6S Yaskawa.jpg

There are other models of SGMJV series servo motors:

SGMJV-A5AAA61, SGMJV-01AAA61, SGMJV-02AAA61, SGMJV-04AAA61, SGMJV-08AAA61, SGMJV-A5AAA6C, SGMJV-01AAA6C, SGMJV-02AAA6C, SGMJV-04AAA6C, SGMJV-08AAA6C, SGMJV-A5ADA61, SGMJV-01ADA61, SGMJV-02ADA61, SGMJV-04ADA61, SGMJV-08ADA61, SGMJV-A5ADA6C, SGMJV-01ADA6C, SGMJV-02ADA6C, SGMJV-04ADA6C, SGMJV-08ADA6C, SGMJV-A5A3A61, SGMJV-01A3A61, SGMJV-02A3A61, SGMJV-04A3A61, SGMJV-08A3A61, SGMJV-A5A3A6C, SGMJV-01A3A6C, SGMJV-02A3A6C, SGMJV-04A3A6C, SGMJV-08A3A6C.
