Panasonic MHMD082G1U Servo Motor 200V 750W A5 AC Servomotor

Panasonic MHMD082G1U Servo Motor 200V 750W A5 AC Servomotor

• Panasonic MHMD082G1U
• Servo Motor 200V 750W MHMD082G1U
• MHMD082G1U Panasonic AC Servo Motors
• Panasonic MHMD082G1U AC Motor Servomotor
• Servo Motor A5II MHMD082G1U A5 AC Servo Motor
• Servo Motor 750W Motor MHMD082G1U
• A5 Series 200V 750W with Oil seal
• SERVOMOTOR 3000 RPM 200VAC
INQUIRY

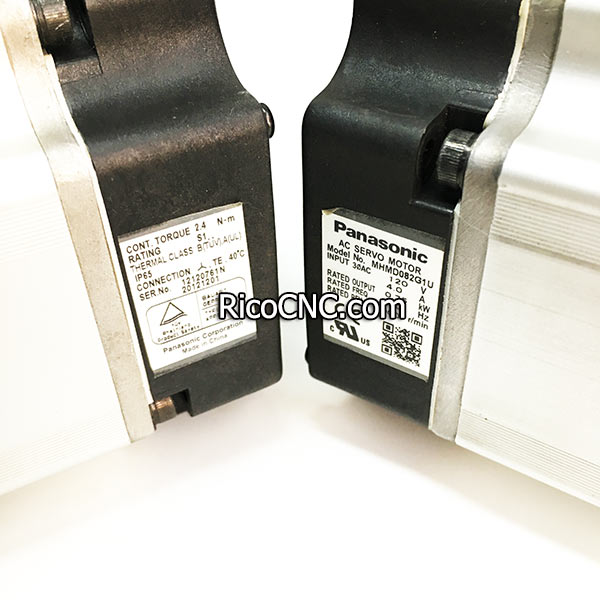

Panasonic MHMD082G1U AC Motor Servomotor.jpg

Panasonic MHMD082G1U Servo Motor 200V 750W A5 AC Servomotor

MHMD082G1U is one of Panasonic MINAS A5 Family Servo Motor A5II.
MHMD082G1U – - AC Motor Servomotor 3000 RPM 750W Incremental 200VAC from Panasonic Industrial Automation Sales.
MHMD082G1U - Panasonic - A5 - 750W 20 Bit Incremental Encoder, 200V Motor, Key & Tap Shaft (oil seal).
This servo motor is high inertia, rated speed 3000RPM, 2.4 NM, key shaft, oil seal, lead wire type Motor.

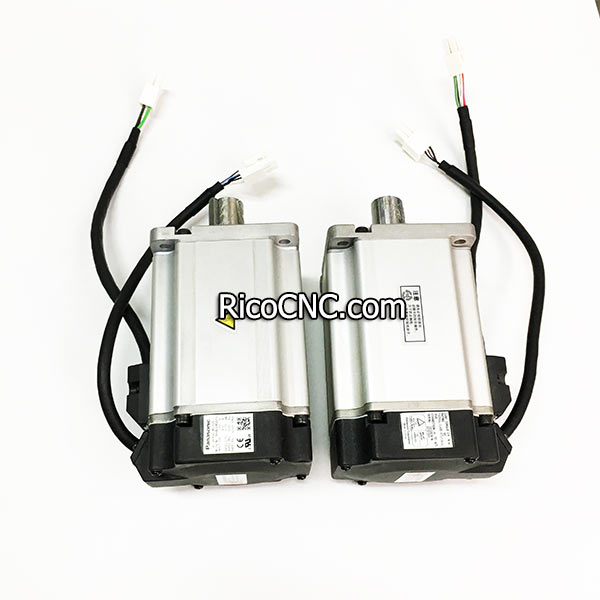

Panasonic MHMD082G1U.jpg

Features:
Compact design
Excellent functionality
Longer service life
2.3 kHz Fastest velocity response frequency
Two degrees of the freedom control system to improve productivity and machining accuracy
Smooth operation and reduce vibration at stopping
Accurate positioning in a short time
Most stable speed lower cogging and low noise

Servo Motor 200V 750W MHMD082G1U.jpg

Applications:
Simple food processing
Packaging
Printing
Metal processing
Motor drives
MHMD082G1U Panasonic AC Servo Motors.jpg
MHMD082G1U Spec Detail

Item	Specifications
Part Number	MHMD082G1U
Details	High inertia, Lead wire type, IP65
Family Name	MINAS A5
Series	MHMD Series
Type	High inertia
Protection class	IP65
About Enclosure	Except for the rotating portion of the output shaft and lead wire end.
Environmental Conditions	For more details, please refer to the instruction manual.
Flange sq. dimension	80 mm sq.
Flange sq. dimension (Unit: mm)	80
Motor lead-out configuration	Lead wire
Motor encoder connector	Lead wire
Power supply capacity (kVA)	1.3
Voltage specifications	200 V
Rated output	750 W
Rated current (A (RMS))	4
Holding brake	without
Mass (kg)	2.5
Oil seal	with
Shaft	Key-way, center tap
Rated torque (N.m)	2.4
Momentary Max. peak torque (N .m)	7.1
Max. current (A (o-p))	17
Regenerative brake frequency (times/min)	Without option: No limit
	With option: No limit
	Option (External regenerative resistor) Part No. : DV0P4283
About regenerative brake frequency	Please refer to the details of [Motor Specification Description], Note: 1, and 2.
Rated rotational speed (r/min)	3000
Rated rotational Max. speed (r/min)	4500
Moment of inertia of rotor ( x10-4 kg ⋅ m²)	1.51
Recommended moment of inertia ratio of the load and the rotor	20 times or less
About recommended moment of inertia ratio of the load and the rotor	Please refer to the details of [Motor Specification Description], Note: 3.
Rotary encoder: specifications	20-bit Incremental system
Rotary encoder: Resolution	1048576

Servo Motor A5II MHMD082G1U A5 AC Servo Motor.jpg

Permissible load

Item	Specifications
During assembly: Radial load P-direction (N)	686
During assembly: Thrust load A-direction (N)	294
During assembly: Thrust load B-direction (N)	392
During operation: Radial load P-direction (N)	392
During operation: Thrust load A, B-direction (N)	147
About permissible load	For details, refer to the [Motor Specification Description] "Permissible Load at Output Shaft".

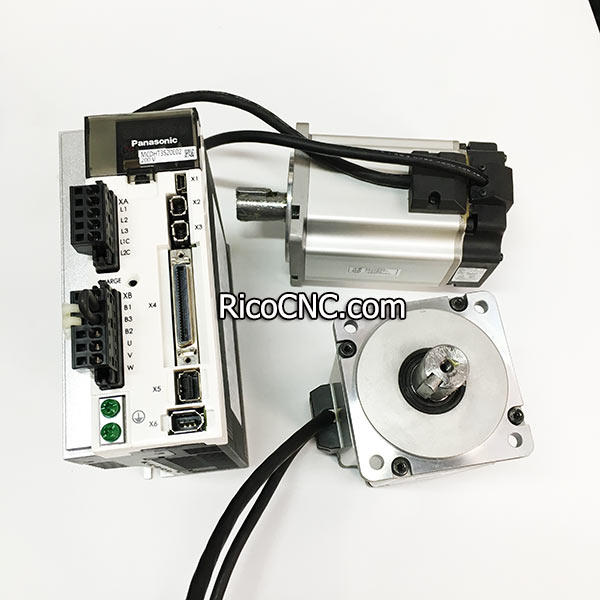

MHMD082G1U servo motor and driver.jpg
Applicable Driver

Part Number	Series	Type	I/F Classification of type	Frame	Supply voltage
MCDHT3520	A5 series	Speed, Position, Torque, Full-closed type	Analog/Pulse	C-Frame	Single/3-phase 200 V
MCDHT3520E	A5E series	Position control type	Pulse train only	C-Frame	Single/3-phase 200 V
MCDHT3520N21	A5ⅡN series	RTEX, Ultra-high-speed Network	RTEX	C-Frame	Single/3-phase 200 V
MCDHT3520ND1	A5ⅡN series	RTEX, Ultra-high-speed Network	RTEX	C-Frame	Single/3-phase 200 V
MCDKT3520	A5Ⅱ series	Speed, Position, Torque, Full-closed type	Analog/Pulse	C-Frame	Single/3-phase 200 V
MCDKT3520E	A5ⅡE series	Position control type	Pulse train only	C-Frame	Single/3-phase 200 V

Servo Motor 750W Motor MHMD082G1U.jpg
Inertia ratio conversion
You can adjust the right inertia ratio by the Inertia ratio conversion input (J-SEL) of the interface. When you have significant load inertia changes, it can adjust unbalanced speed and position gain turning combination. lt ends up a quicker response to your system.

Input/output signal assignment
You can use the parameters to arbitrarily allocate the universal 10 inputs and 6 outputs. (Inputs can be selected as either A contacts or B contacts). The Panaterm setup software provides an exclusive screen for a more simplified setup.

Torque limiter switching
These can be used for applications such as simplified pressure, tension control, and sensor-less homing.
Panasonic servo.jpg
