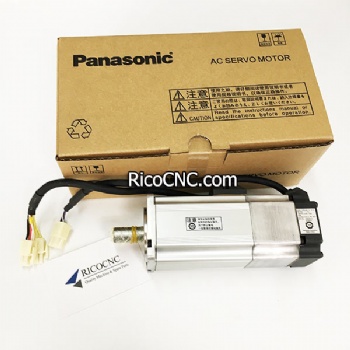

MHMJ042G1V Panasonic MINAS A5 Family AC Servo Motor with Brake 200V 400W
MHMJ042G1V AC servo motor is 200V 400W servomotor with break, it is one of MINAS A5 Family servo motor, widely used for CNC machine Z axis.
Panasonic MHMJ042G1V AC Servo Motors have been around for a long time and are utilized in many applications. They are small in size but pack a big punch and are very energy-efficient. These features allow them to be used to operate remote-controlled or radio-controlled toy cars, robots, and airplanes. Servo motors are also used in industrial applications, robotics, in-line manufacturing, pharmaceutics, and food services.
MHMJ042G1V AC Servo Motors Features:
・10 W to 7.5 kW,
・Input power supply for Driver: Voltage DC 24 V/48 V
・AC 100 V/200 V/400 V, 20 bit incremental
・17 bit Absolute/Incremental encoder, Frequency response 2.3 kHz.
AC servo can handle higher current surges and tend to be used in industrial machinery.
Panasonic MHMJ042G1V AC Servo Motors Spec Detail:
Item | Specifications |
Part Number | MHMJ042G1V |
Details | High inertia, Lead wire type, IP65 |
Family Name | MINAS A5 |
Series | MHMJ Series |
Type | High inertia |
Special Order Product | Special Order Product |
Cautions for Special ordering product | Please avoid the motor, or equipment containing the motor to be distributed to Japan, or other regions through Japan. |
Protection class | IP65 |
About Enclosure | Except rotating portion of output shaft and leadwire end. |
Environmental Conditions | For more details, please refer to the instruction manual. |
Flange sq. dimension | 60 mm sq. |
Flange sq. dimension (Unit: mm) | 60 |
Motor lead-out configuration | Lead wire |
Motor encoder connector | Lead wire |
Power supply capacity (kVA) | 0.9 |
Voltage specifications | 200 V |
Rated output | 400 W |
Rated current (A (rms)) | 2.6 |
Holding brake | with |
Mass (kg) | 1.8 |
Oil seal | with |
Shaft | Key-way, center tap |
Rated torque (N .m) | 1.3 |
Momentary Max. peak torque (N .m) | 3.8 |
Max. current (A (o-p)) | 11 |
Regenerative brake frequency (times/min) | Without option :No limit |
With option :No limit | |
Option (External regenerative resistor) Part No. : DV0P4283 | |
About regenerative brake frequency | Please refer to the details of [Motor Specification Description] , Note: 1, and 2. |
Rated rotational speed (r/min) | 3000 |
Rated rotational Max. speed (r/min) | 5000 |
Moment of inertia of rotor ( x10-4 kg ⋅ m²) | 0.7 |
Recommended moment of inertia ratio of the load and the rotor | 30 times or less |
About recommended moment of inertia ratio of the load and the rotor | Please refer to the details of [Motor Specification Description] ,Note: 3. |
Rotary encoder: specifications | 20-bit Incremental system |
Rotary encoder: Resolution | 1048576 |
Panasonic MHMJ042G1V AC Servo Motors Permissible Load:
Item | Specifications |
During assembly: Radial load P-direction (N) | 392 |
During assembly: Thrust load A-direction (N) | 147 |
During assembly: Thrust load B-direction (N) | 196 |
During operation: Radial load P-direction (N) | 245 |
During operation: Thrust load A, B-direction (N) | 98 |
About permissible load | For details, refer to the [Motor Specification Description] "Permissible Load at Output Shaft". |
Panasonic MHMJ042G1V AC Servo Motors Applicable Driver:
Part Number | Series | Type | I/F Classification of type | Frame | Supply voltage |
MBDKT2510 | A5Ⅱ series | Speed, Position, Torque, Full-closed type | Analog/Pulse | B-Frame | Single/3-phase 200 V |
MBDKT2510E | A5ⅡE series | Position control type | Pulse train only | B-Frame | Single/3-phase 200 V |
