HOMAG 4011041942 4-011-04-1942 One-way Flow Control Valve

HOMAG 4011041942 4-011-04-1942 One-way Flow Control Valve

• HOMAG 4011041942
• 4-011-04-1942 control valve
• GRLA-1/8-QS-4-D
• Festo 193143 control valve
• HOMAG control valve
• HOMAG spare parts
• One-way flow control valve GRLA-1/8-QS-4-D
• Festo 193143 GRLA-1/8-QS-4-D
INQUIRY

HOMAG 4011041942 4-011-04-1942 One-way Flow Control Valve

This is a control valve for HOMAG machine, it is one-way flow control valve, made by Festo, the festo part number is 193143 GRLA-1/8-QS-4-D. The HOMAG part number is 4011041942 or 4-011-04-1942.

HOMAG 4011041942 One-way flow control valve specifications:

Manufacturer	FESTO
Type of pneumatic module	throttle-check valve
Operating pressure	0.2...10bar
Body material	zinc casting chrome
Seal material	NBR caoutchouc
Flow	250l/min
Cable external diameter	4mm
Manufacturer series	GRLA
Input thread	G 1/8" external
Operating temperature	-10...60°C
Application	compressed air

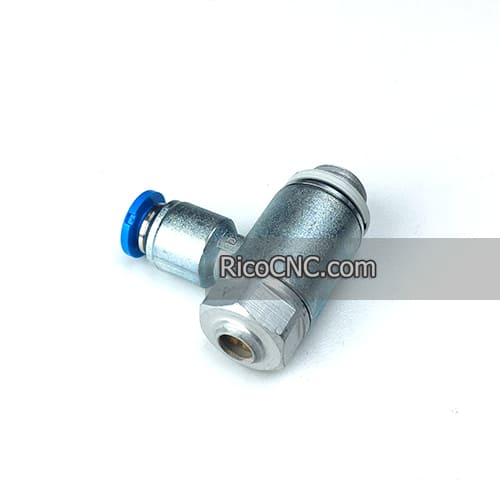

Festo 193143 control valve.jpg

HOMAG 4011041942 One-way flow control valve features:

• Male thread connection

• Push-in connector

• Tubing outside diameter with push-in connector

• Slotted head screw adjustment component

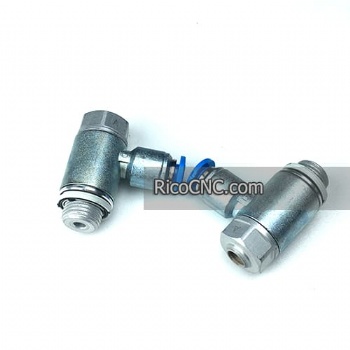

HOMAG control valve.jpg

There also other HOMAG control valves:

HOMAG 4011041942 4-011-04-1942 One-way Flow Control Valve

Homag 4011041711 4-011-04-1711 R412010581 Throttle Stop Valve Steck M5 D=4

etc.

We can offer Siemens, Bosch Rexroth, Aventics, Festo, KEB, Schneider Electric, IFM, NORGEN, Heidenhain, etc. If you are looking for spare parts for your Homag machines. Welcome to contact us!
