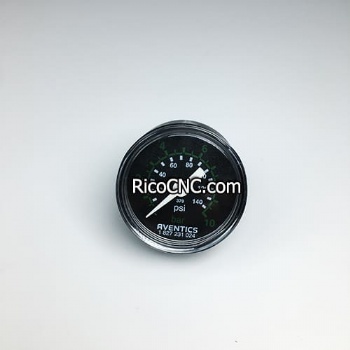

Aventics 1827231024 PG1-ROB-G018-SNL-D40P(0-10) Pneumatic Pressure Gauge
This is Aventics 1827231024 pneumatic pressure gauge PG1-ROB-G018-SNL-D40P(0-10)，Series PG1-SNL， 40MM G1/8 0-10 BAR.
Specifications of Aventics 1827231024 pressure gauge
Pressure gauge version | Bourdon tube pressure gauge, Back port |
Standardization | EN 837-1 |
ATEX | Suitable for ATEX |
Class | 1,6 |
Compressed air connection | G 1/8 |
G 1/8 | G 1/8 |
Nominal diameter | 40 mm |
Scale value | 0.5 |
Range of application min. | 0 bar |
Range of application max. | 8 bar |
Display range min. | 0 bar |
Display range max. | 10 bar |
Working pressure min. | 0 bar |
Working pressure max | Working pressure max |
Min. ambient temperature | -40 °C |
Max. ambient temperature | 60 °C |
Medium | Compressed air |
Main scale unit (outside) | bar |
Main scale color (outside) | Green |
Secondary scale unit (inside) | psi |
Secondary scale color (inside) | White |
Background color | Black |
Pointer color | White |
Weight | 0.06 kg |
RicoCNC offers a wide range of AVENTICS industrial automation parts, including Pneumatic Valves, Cylinders, Air Preparation Units, Pressure Gauges, Pressure Sensors, etc.
