MAS BT40 External Thread Retention Knob Holder Grippers for BT 40 ATC Spindle

MAS BT40 External Thread Retention Knob Holder Grippers for BT 40 ATC Spindle

• BT40-45° external thread gripper
• ACROW BT40 tool gripper
• ACROW No. 9106H-03
• MAS BT40 gripper
• BT40 tool stud gripper
• BT40 pull claw
• BT40-45° H spindle grippers
• Gripper BT40 for pull rod assy
INQUIRY

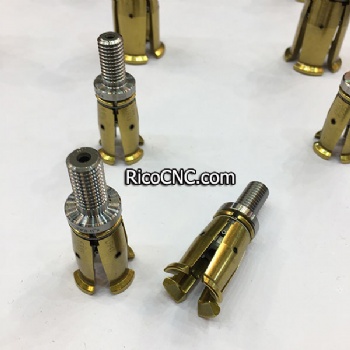

BT40-45° external thread gripper.jpg

MAS BT40 External Thread Retention Knob Holder Grippers for BT 40 ATC Spindle

This MAS retention knob gripper is ACROW BT40-45° external thread (Outer Screw) gripper. There are 4pcs petal pull claw. Widely used for BT40 auto tool changer spindles. This is spindle tool clamping pull stud gripper is a normal spare part for VMC and HMC machines.

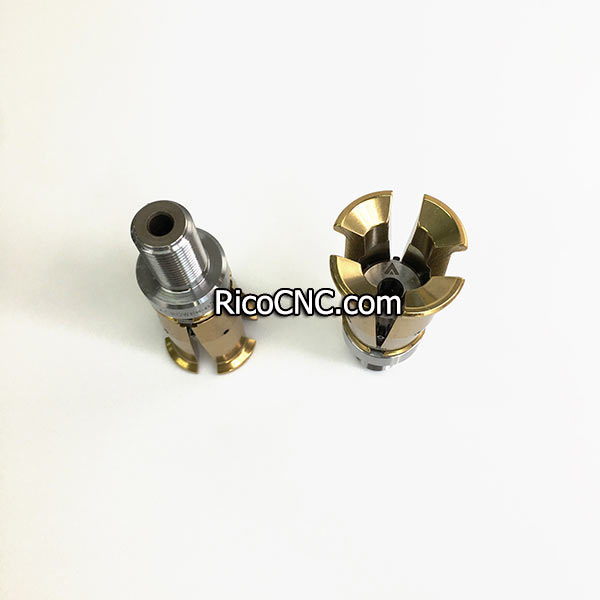

BT40 pull claw.jpg

BT40-45° external thread pull stud gripper features:
100% brand new & high quality
Brand: ACROW (made in Taiwan)
Order No: 9106H-03
Total length: 85mm
Clamp length: 48mm
Inner thread: M16x1.5P
Matching pull bolt: 45 degree
Flange outer diameter: 26mm
Petal pull claws: 4pcs
FS: (Max. Clamping Force): 18 kN
MA: (Max. Tightening Torque): 65Nm
Grippers have the held position function.
Special treated segments can provent abrasion

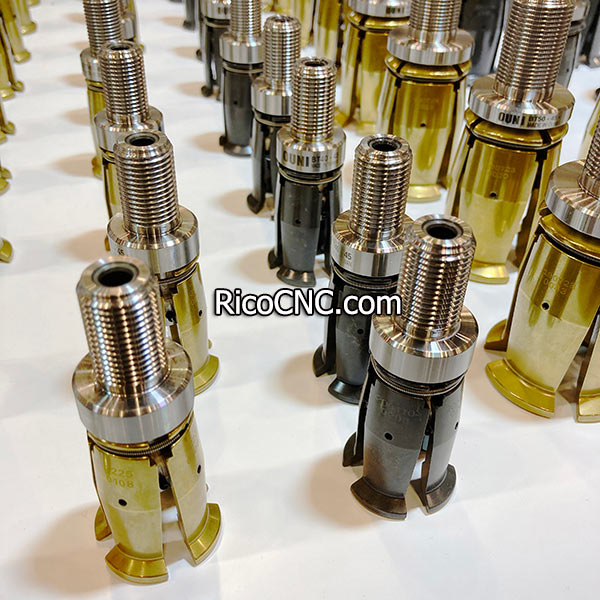

MAS BT40 gripper.jpg
