Panasonic Servomotor MSMF022L1U2M MINAS A6 Series

Panasonic Servomotor MSMF022L1U2M MINAS A6 Series

• AC Servo Motors MSMF022L1U2M
• AC ServoMotors MSMF022L1U2M
• MINAS A6 Series MSMF022L1U2M
• Panasonic Servo Motor
• Panasonic Servo Motor MINAS A6 200w MSMF022L1U2M
• Low inertia servo motor
• 200w 200v servo motor
• Panasonic Servomotor
INQUIRY

Panasonic Servomotor MSMF022L1U2M MINAS A6 Series

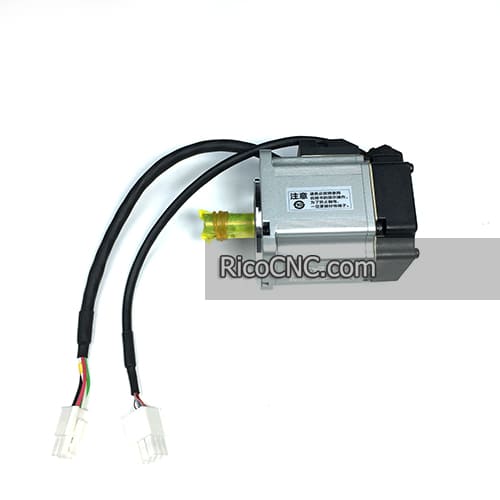

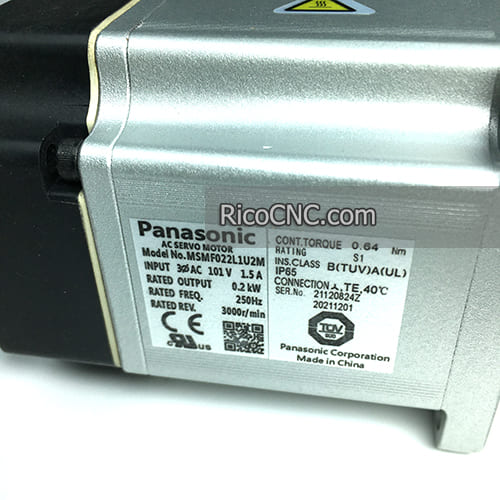

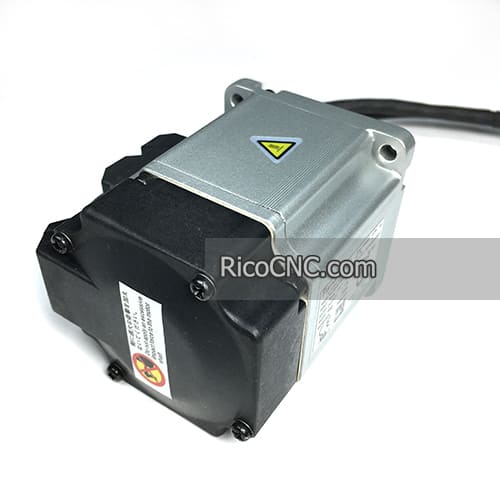

This is an AC servo motor made by Panasonic, this is a MINAS A6 Series, the model number is MSMF022L1U2M.

Panasonic Servo Motor.jpg

Low inertia servo motor.jpg

MSMF022L1U2M servo motor specifications:

Type : MSM = Low inertia (50 W to 5.0 kW)

Series : F = A6 series

Motor rated output : 02 = 200 W

Voltage specifications : 2 = 200 V

Rotary encoder specifications : L = Absolute Format, 23-bit Pulse count, 8388608 Resolution, 7-wire Wire count

Design order : 1 = Standard

Motor structure : U2 = Key Way Threaded shaft, without Holding brake, with oil seal, Leadwire type motor I/F

Special specifications : M

AC Servo Motors MSMF022L1U2M.jpg

MINAS A6 Series MSMF022L1U2M.jpg

Features:

50 W to 22 kW, Input power supply for Driver: Voltage DC 24 V/48 V・AC 100 V/200 V/400 V, 23 bit Absolute/Incremental・battery-less Absolute/Incremental encoder, Frequency response 3.2 kHz

Panasonic Servo Motor MINAS A6 200w MSMF022L1U2M.jpg

RicoCNC also can supply other brands CNC motor and drivers such as:
Mitsubishi Servo, ToAuto Servo, Servo Power Transformer, Delta Servo Kits, Yaskawa Servo, Panasonic Servo, Fuji Servo, Sewing Machine Servo, ASDA-A2 Series, ASDA-B2 Series, ASDA-A Series.
