400916-00961A HALS HGP-10LMG GREASE Pump for DOOSAN Machine

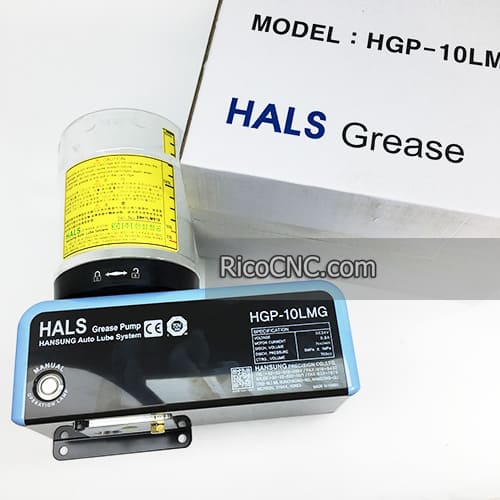

This is a Hansung Grease Pump, the model is HGP-10LMG. It is a resistive and intermittent pump with a measuring valve. It use for DOOSAN Machine, the DOOSAN P/N is 400916-00961A.


Features of 400916-00961A Grease pump:

· Compact and lightweight design with built-in depressurization features for the supply of quantitative grease

· This grease pump is assembled with the metering valve and discharges the quantity of grease on time.

· Easy to replace cartridge to recharge grease, maintaining a clean environment

· A grease pump that is designed to be excellent at lubrication points, such as the LM guide and ball screw

· Designated grease (NLGI Grade 000, 00, 0, 1) using pump

Doosan Grease pump.jpg

PUMP SPECIFICATION

Operating Temperature-10 ~ +45
Discharging Pressure (kg/cm²)HMG:80, LMG:50
Discharging Volume (cc/min)7
Power Consumption24W
Interval TimeMore than 10 minutes
Discharging PortPT1/8″
Weight (Kg)2.5

Doosan PUMP.jpg

MOTOR SPECIFICATION

Out Put8W
RPM6500
Voltage(V)DC 24V
Current(A)0.8A

Rico supply various Doosan CNC parts. Please contact us for more information!
