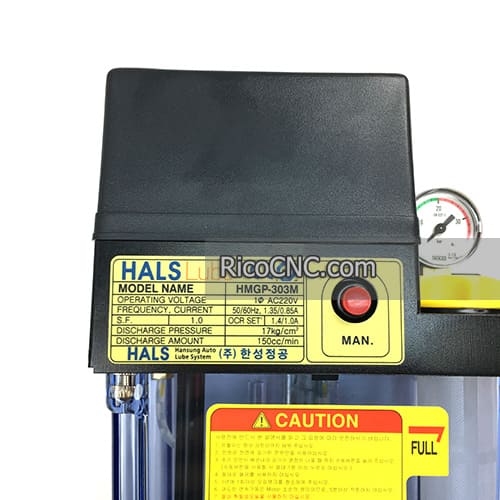

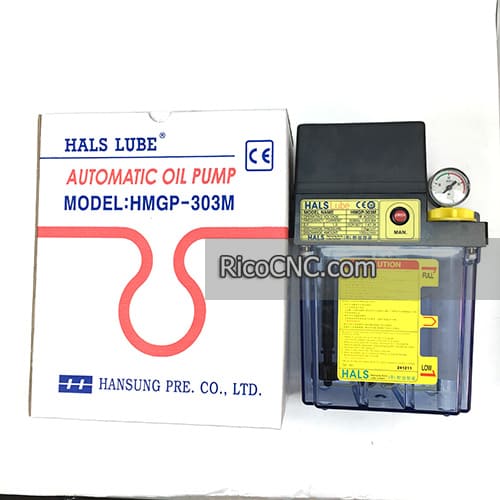

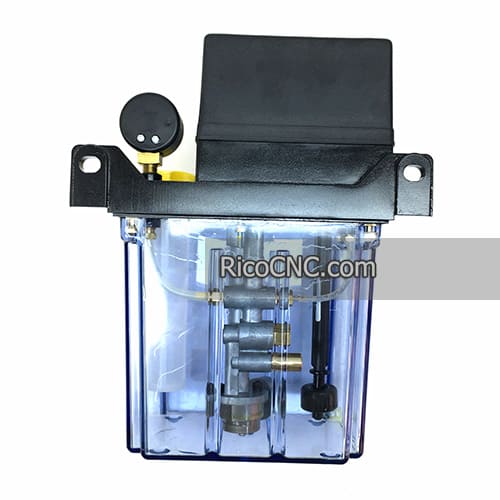

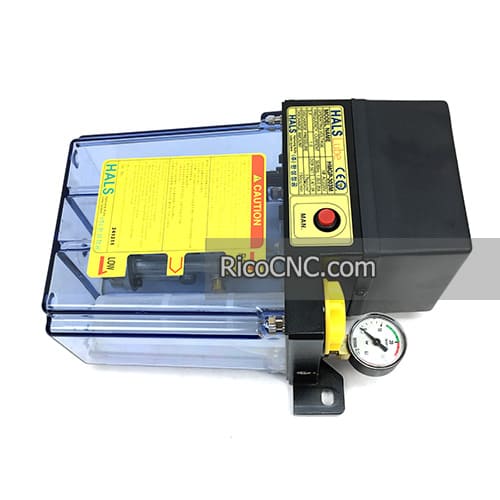

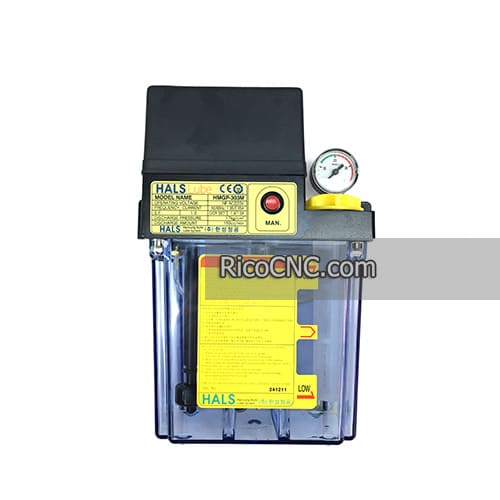

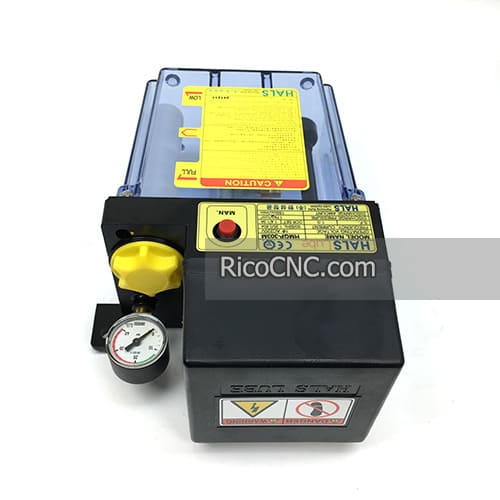

HALS Lubricator Pump HMGP-303M External Control Fixed Quantity Oil Supply Pump
This is a lubricator pump with 2 liter tank, made by Hansung, the model number is HMGP-303M.
HALS Lube HMGP-303M Feature
• A highly reliable externally controlled fixed quantity oil supply pump.
• It is used across a wide range of fields, and is especially suitable as a fixed quantity oil supply pump for high-precision, large machine tools.
• The pump's main drive connection parts are made of single die casting pieces to ensure excellent durability.
• An external control type that allows free pump control.
• It has a built-in ullage decrease detector and a pressure decrease detector.
HMGP-303M Lubricator Pump specifications:
| MODEL NAME | HMGP-303M | |
| PUMP TYPE | GEAR PUMP | |
| DISCHARGE PRESSURE | 17kg/cm² | |
| PRESSURE GAUGE | 0~35kg/cm² | |
| USING OIL | 32~220(cSt) | |
| FILTER | 80 Mesh | |
| TANK CAPACITY | 2Liter | |
| DISCHARGE AMOUNT | 150cc/min | |
| FLOAT S/W | Contact type A contact (NO) | |
| Operation pressure : 12 ± 1 bar ON | ||
| OIL SUPPLY CONTROL DEVICE | External control | |
Rico also can supply HALS oil pump like HMGP-303S, 400916-00961A HALS HGP-10LMG GREASE Pump for DOOSAN Machine, etc,
Please contact us for more information!
