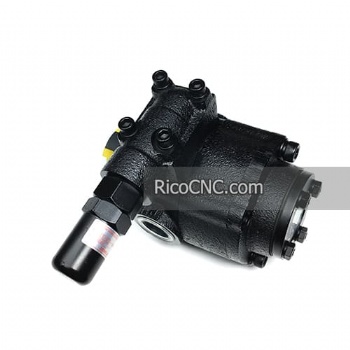

Hals HTP-220HAVB Lube Oil Pump
This is a gear oil pump from Hals, the type is HTP-220HAVB. This internal gear bulk type pump structure that can operate the pump with a motor power supply.The connection section is identical, but it has a wife range of performances according to the shape of the internal gear.
Specification of Hals HTP-220HAVB Lube Oil Pump:
| TYPE | 50Hz 4P(1500rpm) | 60Hz 4P(1800rpm) | ||||
| DISCHARGE AMOUNT(ℓ/min) | MAX. DISCHARGE PRESSURE(kg/cm²) | DISCHARGE AMOUNT(ℓ/min) | MAX. DISCHARGE PRESSURE(kg/cm²) | |||
| 400W | 750W | 400W | 750W | |||
| HTP-220HAVB | 29.7 | - | 5.5 | 35.6 | - | 3.5 |
Hals Lube Oil Pump HTP-220HAVB Applications: MCT, CNC, Other turning and cutting processing machines, Industrial Machines.
HTP-220HAVB gear oil pump Features:
1. lt uses a double oil seal to minimize oil leaks
2. Water-soluble cutting fluids can be used
3. It uses a fluoride oil seal, and can be used at high temperature
4. A relief valve can be attached for easy pressure control
5. VD is an external drain relief valve
6. 100V/220V motor one-body pump.
7. Use the pump same as HMTP-3M-HA(VB/VD).
8. Use small to medium oil quantity type.
