Original New Japan SMC MDUB25-40DMZ Plate Cylinder

Original New Japan SMC MDUB25-40DMZ Plate Cylinder

• SMC MDUB25-40DMZ plate cylinder
• Part Number: MDUB25-40DMZ, ø:25 mm Stroke:40 mm
• SMC MDUB25-40DMZ compact cylinder
• SMC Pneumatics MU Plate Cylinders
• MDUB25-40DMZ SMC compact cylinder
• New SMC plate cylinder
• SMC cylinder China supplier
• SMC plate cylinder for sale
INQUIRY

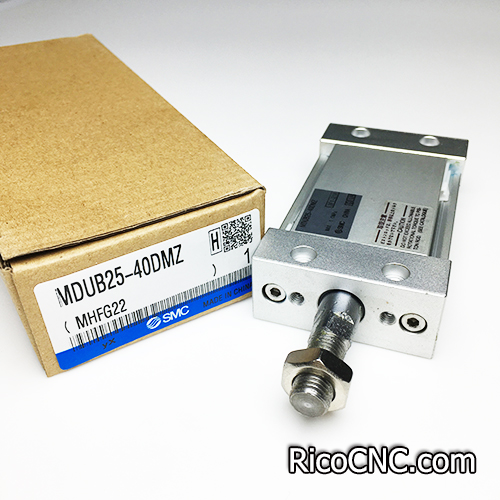

MDUB25-40DMZ SMC cylinder.jpg

Original New Japan SMC MDUB25-40DMZ Plate Cylinder

This cylinder is SMC plate cylinder with part number MDUB25-40DMZ double acting, single rod with auto switch mounting groove.
SMC MDUB25-40DMZ compact cylinder.jpg

SMC is Japan Industry Pneumatic Manufacturer. There are 4 technical development centers, Japan, the United States, Europe, and China.
SMC MDUB25-40DMZ.jpg

SMC MDUB25-40DMZ compact cylinder is an oval piston design, which can save space. And this plate cylinder can be mounted from multiple directions.
SMC cylinder.jpg

Features:
▪ Double acting, single rod plate cylinder
▪ Possible to mount without brackets
▪ Auto switch mounting grooves prevent projection of auto switches
▪ Auto switches can be mounted in 4 directions
SMC plate cylinder.jpg

Technical specifications:

Cylinder (Tube) Inner Diameter(φ)	25	Stroke(mm)	40
Cylinder Operation Method	[Double Acting] Double Acting	Rod Operation Method	Single Rods
Main Body Shape	[Block Shape] Plate Cylinder	Additional Function	Standard
Environment, Applications	Standard	End Locking	No
Valves	No	Operating Pressure(MPa)	0.05～0.7
Cushion	Rubber cushion	Specifications	Built-in magnet
Port thread type	M Screw	Auto Switches	Without auto switch
Lead Wire Length(m)	N/A	The number of the switches	N/A
Type of Auto Switch Mounting	N/A	Type of Mount Support	Basic type
Rod Tip Shape	Male rod end	Custom-made Specifications	None
Connector type	-	-	-

MDUB25-40DMZ cylinder.jpg

Other models of SMC cylinder are also available here.

MUB25-5DMZ, MUB25-10DMZ, MUB25-15DMZ, MUB25-20DMZ, MUB25-25DMZ, MUB25-30DMZ, MUB25-35DMZ, MUB25-40DMZ, MUB25-50DMZ, MUB25-75DMZ, MUB25-100DMZ, MUB25-125DMZ, MUB25-5DZ, MUB25-10DZ, MUB25-15DZ, MUB25-20DZ, MUB25-25DZ, MUB25-30DZ, MUB25-35DZ, MUB25-40DZ, MUB25-50DZ, MUB25-75DZ, MUB25-100DZ, MUB25-125DZ

MDUB25-5DMZ, MDUB25-10DMZ, MDUB25-15DMZ, MDUB25-20DMZ, MDUB25-25DMZ, MDUB25-30DMZ, MDUB25-35DMZ, MDUB25-40DMZ, MDUB25-50DMZ
MDUB25-75DMZ, MDUB25-100DMZ, MDUB25-125DMZ, MDUB25-5DZ, MDUB25-10DZ
MDUB25-15DZ, MDUB25-20DZ, MDUB25-25DZ, MDUB25-30DZ, MDUB25-35DZ, MDUB25-40DZ, MDUB25-50DZ, MDUB25-75DZ, MDUB25-100DZ, MDUB25-125DZ

RicoCNC can offer a range of cylinders, such as FESTO, SMC, CKD, Aventics, NORGREN, AIRTAC, IFM, Schneider, OMRON, etc.
If you are looking for CNC machine parts, please feel free to contact us!
