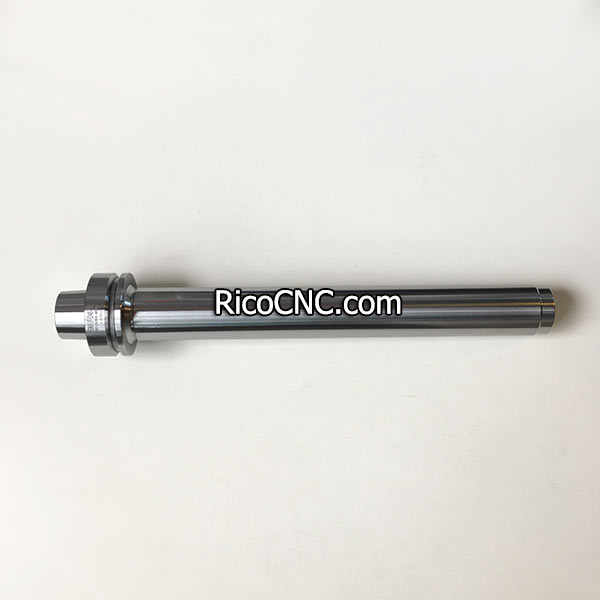

HSK63F spindle test arbor.jpg

HSK63F Spindle Runout Test Bars Calibration Arbors Tools
This test bar/calibration tool is HSK63F test arbor, for HSK63 F spindle runout testing. It is a precision measuring equipment for machine auto tool changer spindle maintenance, the HSK63F-D40-300L test bar runout less than 0.003mm.

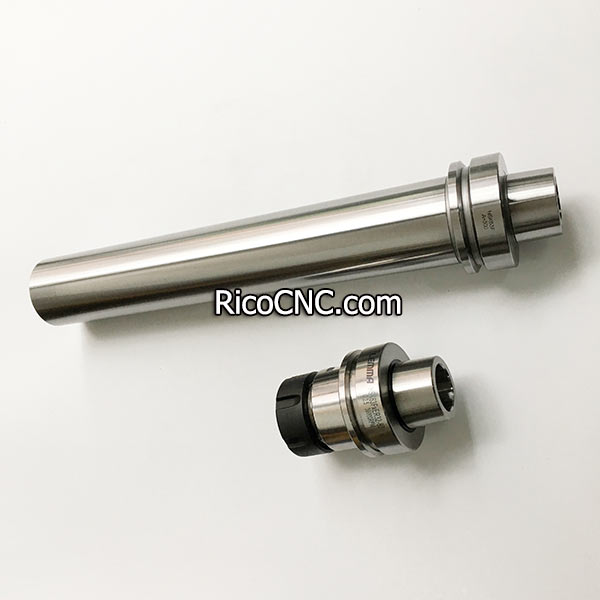

HSK63-F spindle precision test bar.jpg

HSK63F spindle test arbor parameters:
Model: HSK63F-D40-300L (A=340mm)
Precision ground all diameters concentric within 3 microns
Roundness within 0.002mm
Concentricity within 0.003mm
Surface roughness Ra < 0.4
Made from 20CrMnTi hardened to 54 - 56rc
Arbor diameter is 40mm in diameter
Protective case included

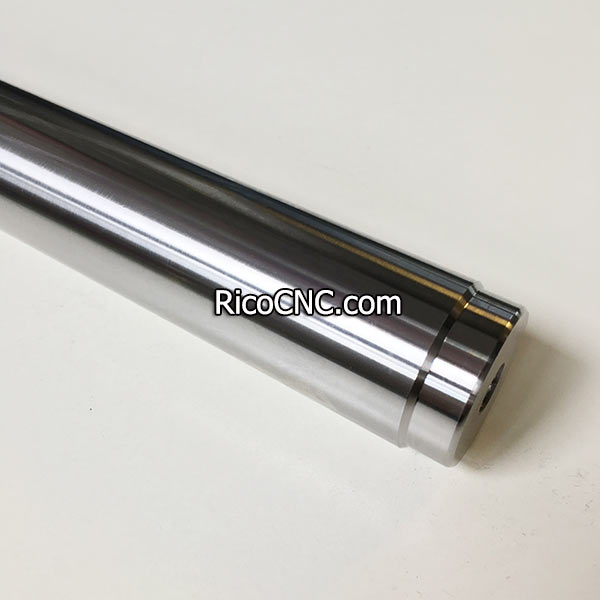

HSK63 F runout test bars.jpg

HSK63 calibration arbor goes by many different names including the spindle run-out arbor, calibration arbor, runout test bars, spindle taper test bar and test arbor.

HSK63F calibration arbor.jpg

Spindle runout arbors offer a quick and easy way to verify that a machine spindle is running true after a crash, after a machine has been moved, or periodically as a performance check.
HSK63F calibration tool.jpg

Spindle runout test arbors are available in a number of shank configurations. Spindle calibration test rod are available in various lengths, and also in custom sizes, and the following versions:

  HSK-A32

  HSK-E32

  HSK-F32

  BT30

  HSK-A40

  HSK-E40

  HSK-F63

  BT40

  HSK-A50

  HSK-E50


  BT50

  HSK-A63

  HSK-E63



  HSK-A80

  HSK-E80


  SK30/ISO30

  HSK-A100

  HSK-E100


  SK40

Runout test arbors for HSK63 spindles.jpg

The largest cause of excessive tool wear and cutter bits breakage are directly caused from machine tool spindle runout as well as excessive slop or axial play. The spindle runout test bar can be used to test your CNC machine mills for accuracy and alignments, and also to ensure a stable production environment as well as consistency moving jobs from one machine to another.
Spindle runout test bars are easy to use and a fast way to verify your machine spindle is running properly. Check them after a machine has been crashed and take the proper steps before you start making scrap parts.
HSK F63 test arbor 40mm x 300mm.jpg

RicoCNC also supplies a wide range of CNC spare parts, CNC toolings, CNC tool holders, tool clips, collets, spanners, locking fixture, tool setter, etc.
Test bar arbor for HSK63F spindles.jpg

If any needs, welcome to contact us now.
