AVENTICS R414002403 Pressure Regulator ED02-000-060-010-1M12A

AVENTICS R414002403 Pressure Regulator ED02-000-060-010-1M12A

• R414002403 pneumatic valve
• AVENTICS R414002403 Pneumatic Valves
• E/P pressure regulator
• ED02-000-060-010-1M12A
• AVENTICS R414002403
• AVENTICS Series ED02
• pressure regulator R414002403
• Electropneumatic pressure regulator
INQUIRY

AVENTICS R414002403 Pressure Regulator ED02-000-060-010-1M12A

This is a pressure regulator made by AVENTICS, the model number is R414002403, series ED02, ED02-000-060-010-1M12A.

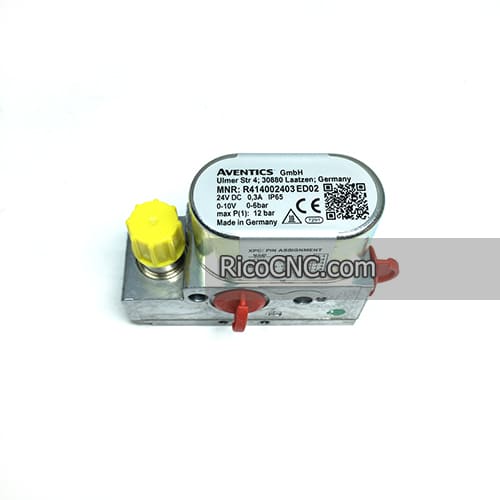

R414002403 pneumatic valve.jpg

AVENTICS R414002403 Pressure Regulator ED02-000-060-010-1M12A specification:

Type	Poppet valve
Working pressure min.	0.5 bar
Working pressure max	8 bar
Min. ambient temperature	0 °C
Max. ambient temperature	50 °C
Compressed air connection input	1/8 NPT, G 1/8
Compressed air connection output	1/8 NPT, G 1/8
Medium	Compressed air
DC operating voltage	24 V
Max. power consumption	300 mA
Signal connection	Plug
	M12
	5-pin

AVENTICS R414002403 Pressure Regulator ED02-000-060-010-1M12A Features:

Compact design

High control precision and dynamics

Suitable for a variety of applications

Manifold together with no additional base plate

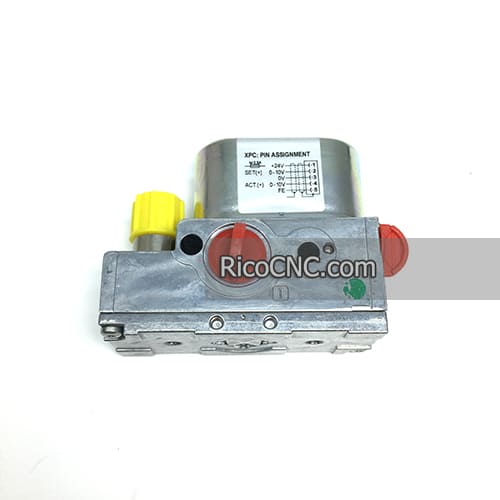

AVENTICS R414002403.jpg

Other models of AVENTICS pressure regulators is available:
