4011010503 4-011-01-0503 Distributor Air Preparation R412007251 for HOMAG

• 4011010503 distributor
• 4-011-01-0503 distributor
• AVENTICS R412007251
• 4-WAY DISTRIBUTOR G1/2 AS3-DIS
• distributor for HOMAG Weeke
• AVENTICS AS3-DIS 4-FACH G1/2
• 4011010503 Air Preparation R412007251
• HOMAG pneumatic valve AS3-DIS-G012-NC3
INQUIRY

4011010503 4-011-01-0503 Distributor Air Preparation R412007251 for HOMAG

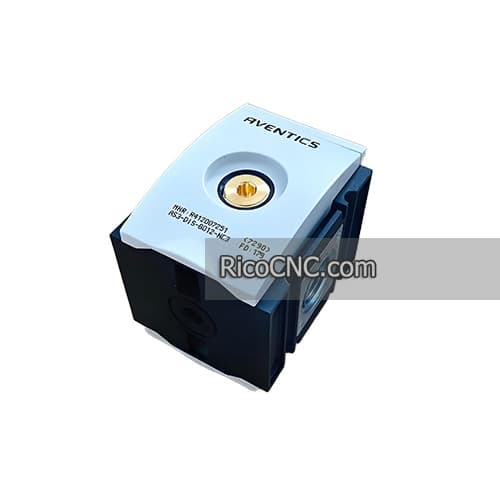

This is a distributor for HOMAG machine, the HOMAG part number is 4011010503 4-011-01-0503. It made by AVENTICS, the model number is R412007251 AS3-DIS 4-FACH G1/2.

The AVENTICS R412007251 Series AS3-DIS is a distributor unit designed for use in pneumatic systems.

Specifciations of 4011010503 Distributor:

Parts	Distributor
Port	G 1/2
Type	Can be assembled into blocks
Version	Distributor 4x
Mounting orientation	Any
Min. working pressure	0 bar
Max. working pressure	16 bar
Min. ambient temperature	-10 °C
Max. ambient temperature	50 °C
Medium	Compressed air, Neutral gases
Housing material	Polyamide
Material front plate	Acrylonitrile butadiene styrene
Seal material	Acrylonitrile butadiene rubber
Material threaded bushing	Die cast zinc
