4022030317 4-022-03-0317 Electric Spindle Indicator AP05 for HOMAG

4022030317 4-022-03-0317 Electric Spindle Indicator AP05 for HOMAG

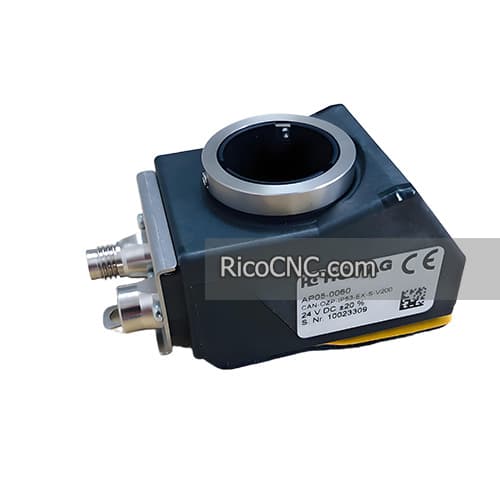

This is an electric spindle indicator for HOMAG machine, the HOMAG part number is 4022030317 4-022-03-0317. It is an AP05 position indicator.

The AP05 position indicator guides the user intuitively to the correct machine setting in the case of product or format change. The optimized backlit display indicates target values and actual values straight to the point. Two LEDs show the machine operator precisely the direction whereto the adjustment is to be performed.The AP05 helps avoid wrong machine settings and enhances process safety of flexible production machines.

4022030317 ELECTRIC SPINDLE POSITION INDICATOR AP05 D20H7 STD features:

Electronic position indicator with bus/data interface

Backlit two-row LCD

Display of target and actual value displays with integrated alignment

User guidance through status LEDs

Hollow shaft with  Ø 20 mm and clamping ring made of stainless steel

Enhanced shock resistance owing to protective display glass

Integrated RS485 interface, CAN bus or IO-Link as an option

Robust sensor technology unit thanks to magnetic scanning

Mechanically compatible with the AP04 and DA04 position indicators

IP53 protection class, IP65 as an option

Industry 4.0 ready

RicoCNC carries a wide range of Homag machine parts, including Homag Weeke CNC machine parts, Holzma beam saw parts, and Homag Brandt edgebander parts to help you reduce downtime.

If you are looking for Homag machine parts, please don’t hesitate to contact us!
