Homag 4011010313 4-011-01-0313 Pneumatic Distribution Block 0821300920

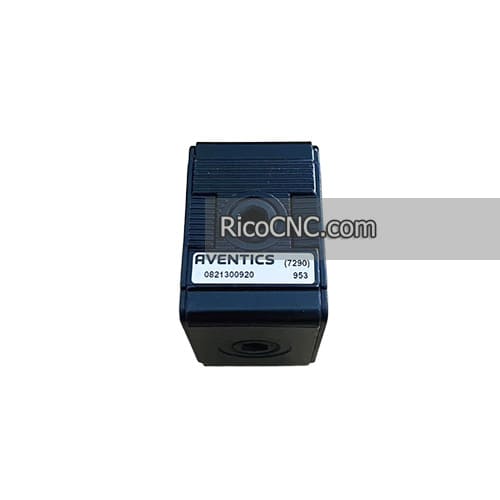

This is a Pneumatic Distribution Block for Homag machine, the Homag part number is 4011010313 4-011-01-0313. It is Aventics Distributor, part number is 0821300920 NL2-DIL-G014-NC4.

Specifications of 4011010313 distributor:

Type	Narrow distributor
Type	Can be assembled into blocks
Parts	Distributor
Mounting orientation	Any
Port	G 1/4
Version	Distributor 4x
Working pressure min.	0 bar
Working pressure max	16 bar
Min. ambient temperature	-10 °C
Max. ambient temperature	60 °C
Medium	Compressed air, Neutral gases
Housing material	Die cast zinc
Material front plate	Acrylonitrile butadiene styrene
