Homag 4011041731 4-011-04-1731 Air Pressure Regulator R414002294

• 4011041731 pressure regulating valve
• 4-011-04-1731 control valve
• AVENTICS R414002294
• PNEUMATIC REGULATOR 4-011-04-1731
• ED05-000-060-420-1M12S
• HOMAG Poppet valve R414002294
• Homag Spare parts
• R414002294 Air Pressure Regulator
INQUIRY

Homag 4011041731 4-011-04-1731 Air Pressure Regulator R414002294

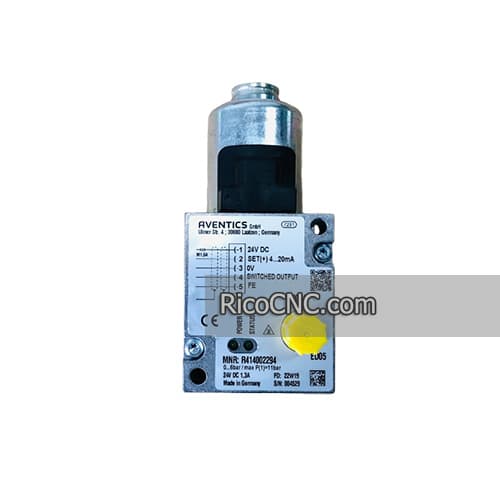

This is an Air Pressure Regulator for Homag machine, the Homag part number is 4011041731 4-011-04-1731. It is AVENTICS brand PNEUMATIC REGULATOR, the model number is R414002294, ED05-000-060-420-1M12S.

Specifications of 4011041731 4-011-04-1731 Air Pressure Regulator R414002294:

Input Signal Type	Electro-Pneumatic
Maximum Air Flow	35.3 scfm
Supply Voltage	24 V dc
Port Size	1/4 BSPP
Set Pressure Range	0 to 159 psi
Thread Standard	G
Operating Temperature Range	0 to 70 °C
